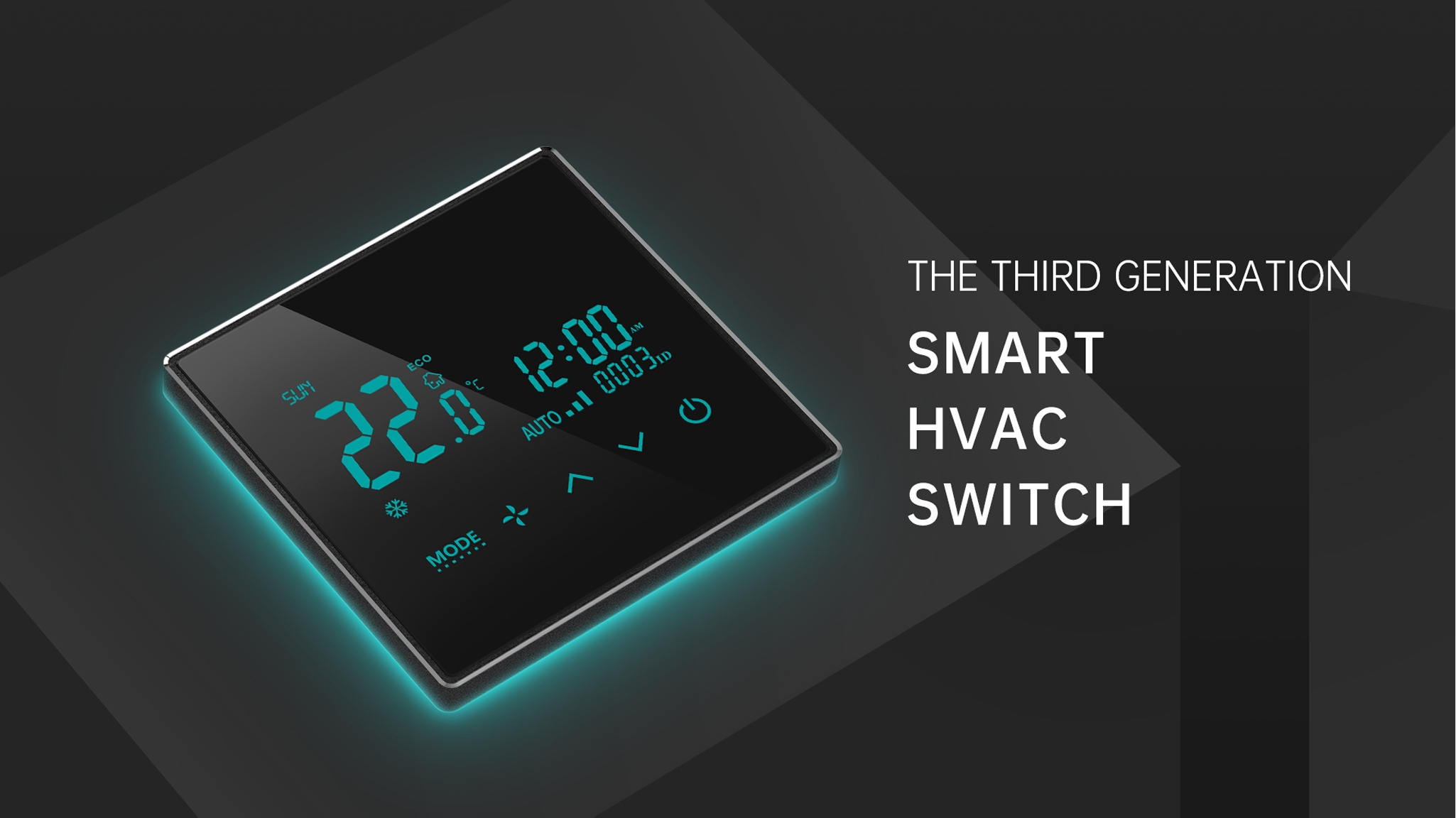

The Third Generation SBUS Smart HVAC Switch

Key Features

  • 7-in-1 Control: Manages VRV, central/split AC, floor heating, and IR A/V.
  • 7-Color Display: Clearly indicates 7 distinct operating modes.

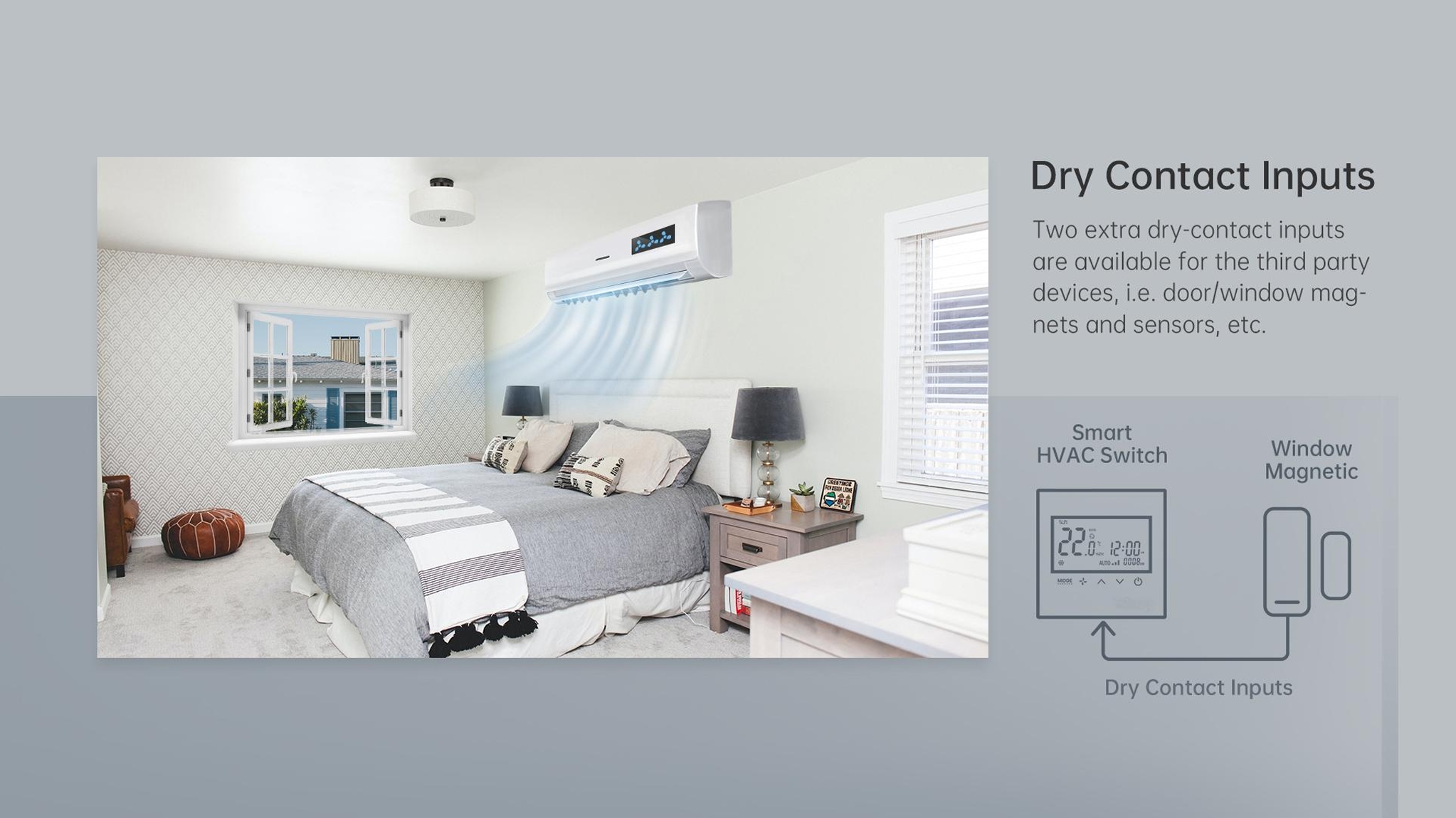

  • Dual Dry Contacts: Easy integration with third-party sensors and devices.

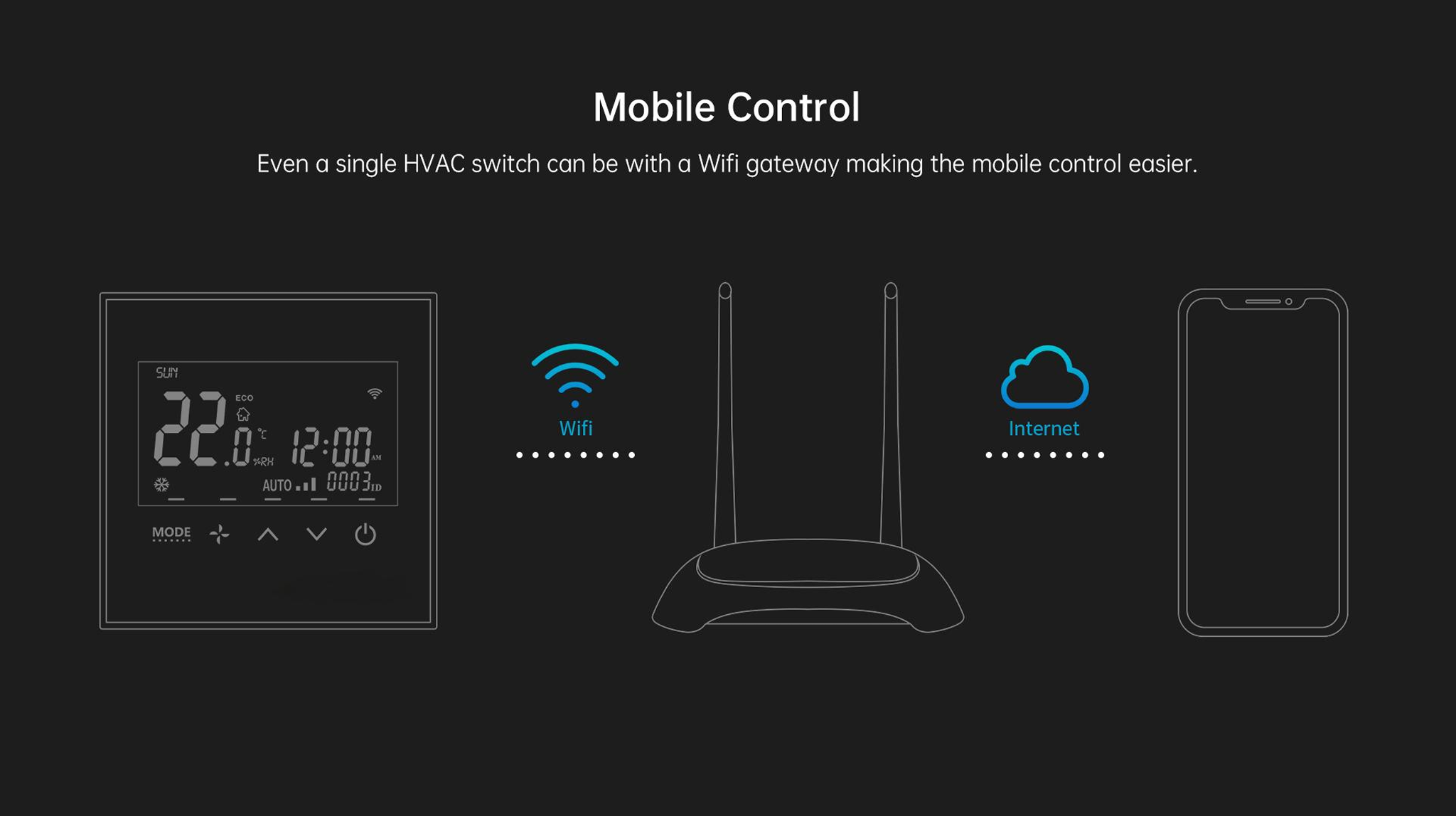

  • WiFi Remote App: Control and monitor from anywhere, anytime.
  • Smart Scene Linkage: Syncs with lighting for preset HVAC modes.
  • Secure Panel Lock: Prevents tampering, ideal for public and commercial spaces.

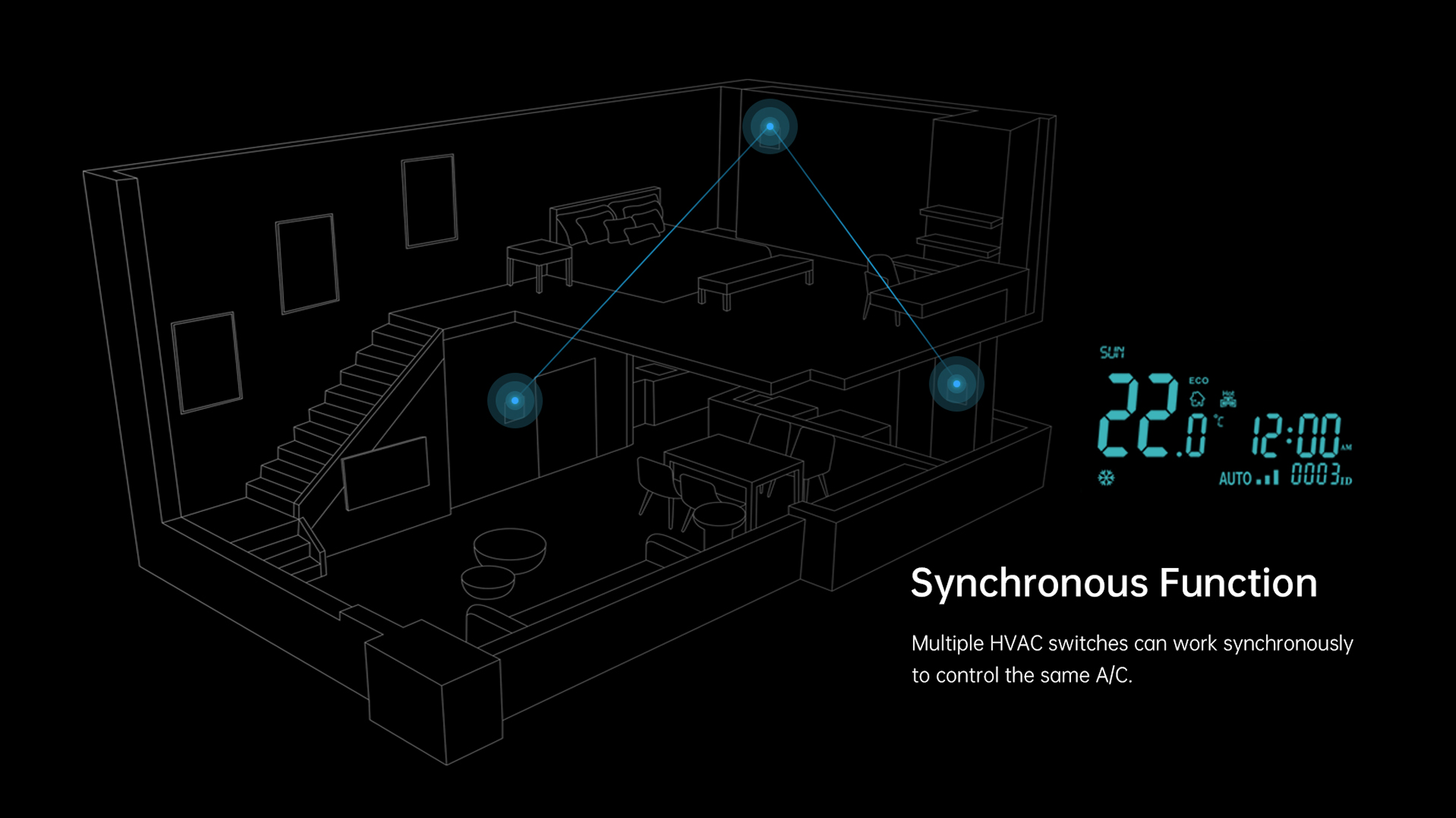

  • Multi-Switch Sync: Keeps multiple switches running in perfect synchronization.

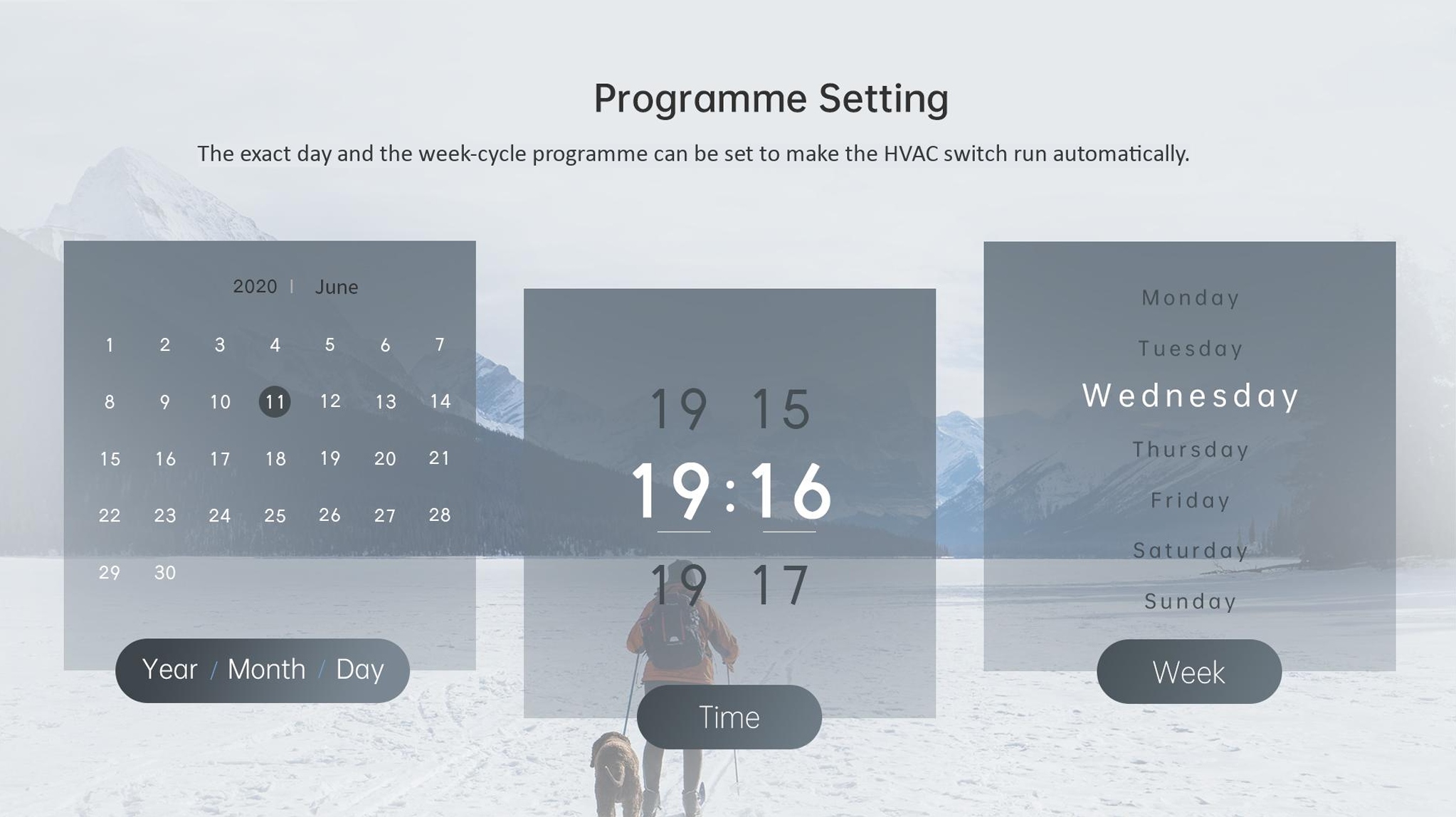

  • Weekly Timer: Supports automated daily and weekly scheduling.

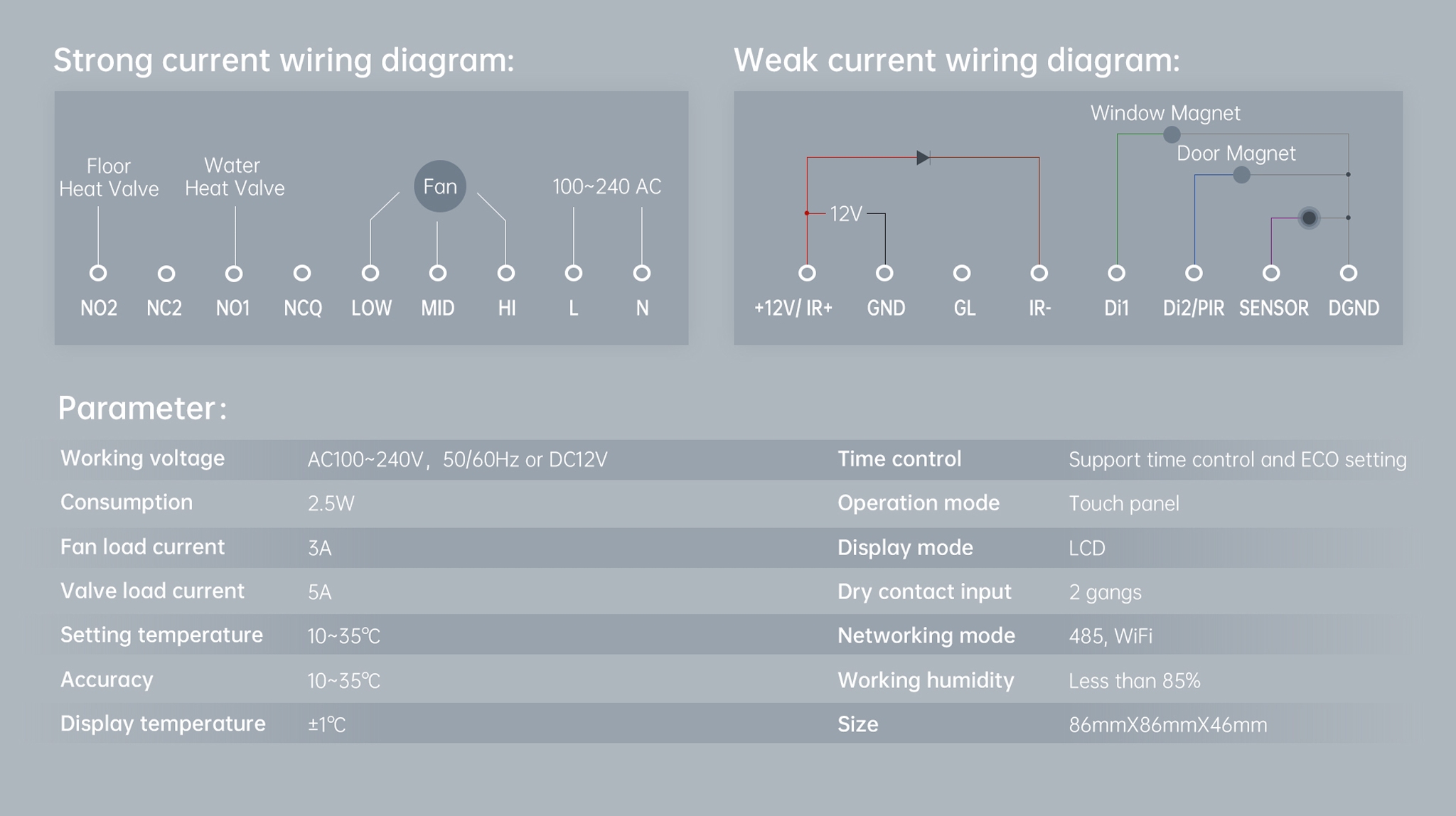

Item Specification
Working Voltage AC100~240V, 50/60Hz or DC12V
Power Consumption 2.5W
Fan Load Current 3A
Valve Load Current 5A
Dry Contact Input 2 gangs
Temperature Range 10~35°C
Display Temperature ±1°C
Networking Mode 485, WiFi
Size 86mm×86mm×46mm
Time Control

Support time control and ECO setting

Operation Model Touch panel
Display Mode LCD
Working Humidity Less than 85%
