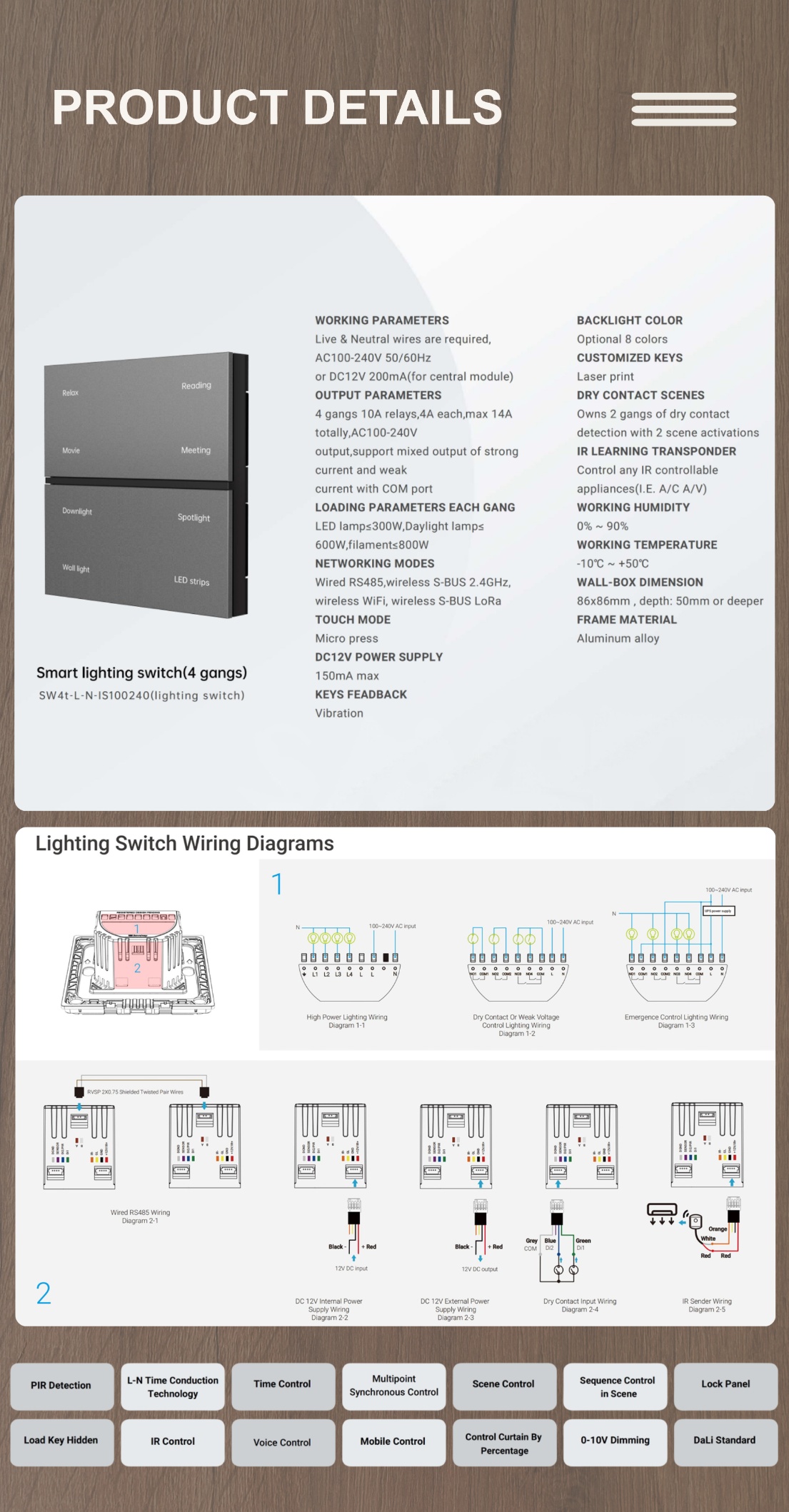

| Item | Specification |
|---|---|
| Panel Series | 4th Gen Titanium Series Smart Switch |
| Input Power Supply | AC100-240V 50/60Hz or DC12V 200mA (central module) |
| DC12V Power Consumption | Max 150mA |
| Output Configuration | 4 gangs 10A relays per gang, total max 14A; AC100-240V output |
| Load Capacity Per Gang | LED lamp:300W; Downlight:600W; Filament lamp:800W |
| Touch Mode | Micro press vibration feedback |
| Backlight | Optional 8 backlight colors, PIR sensor trigger on/off |
| Customized Setting | Laser engraved text on buttons |
| Dry Contact Function | 2 groups dry contact detection, supports 2 scene activations |
| IR Function | Built-in IR learning transponder |
| Working Humidity Range | 0% ~ 90% |
| Working Temperature Range | -10℃ ~ +50℃ |
| Wall Mount Box Dimension | 86×86mm, mounting depth ≥50mm |
| Frame Material | Aluminum alloy |

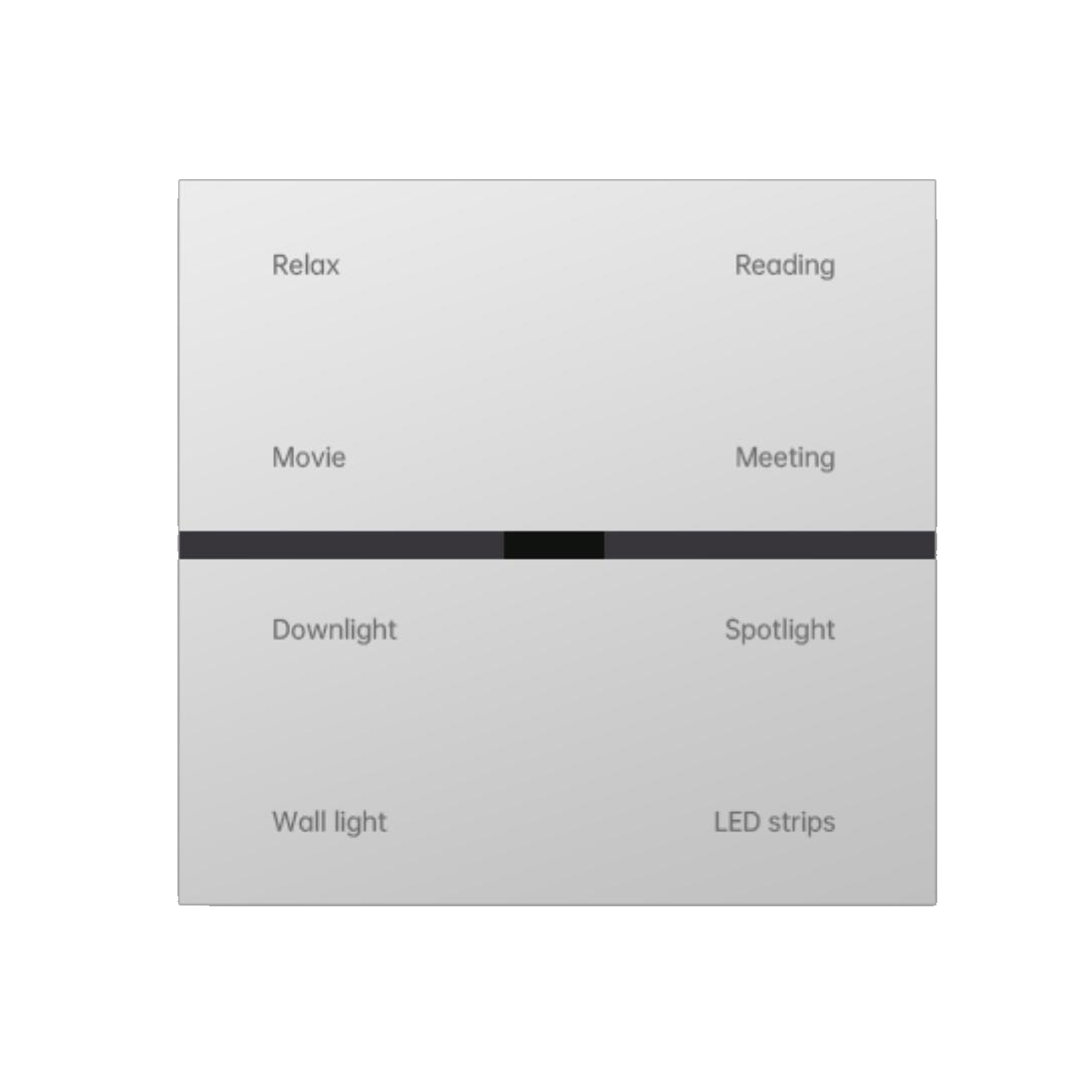

4th Gen TITANIUM Serie Smart Switch

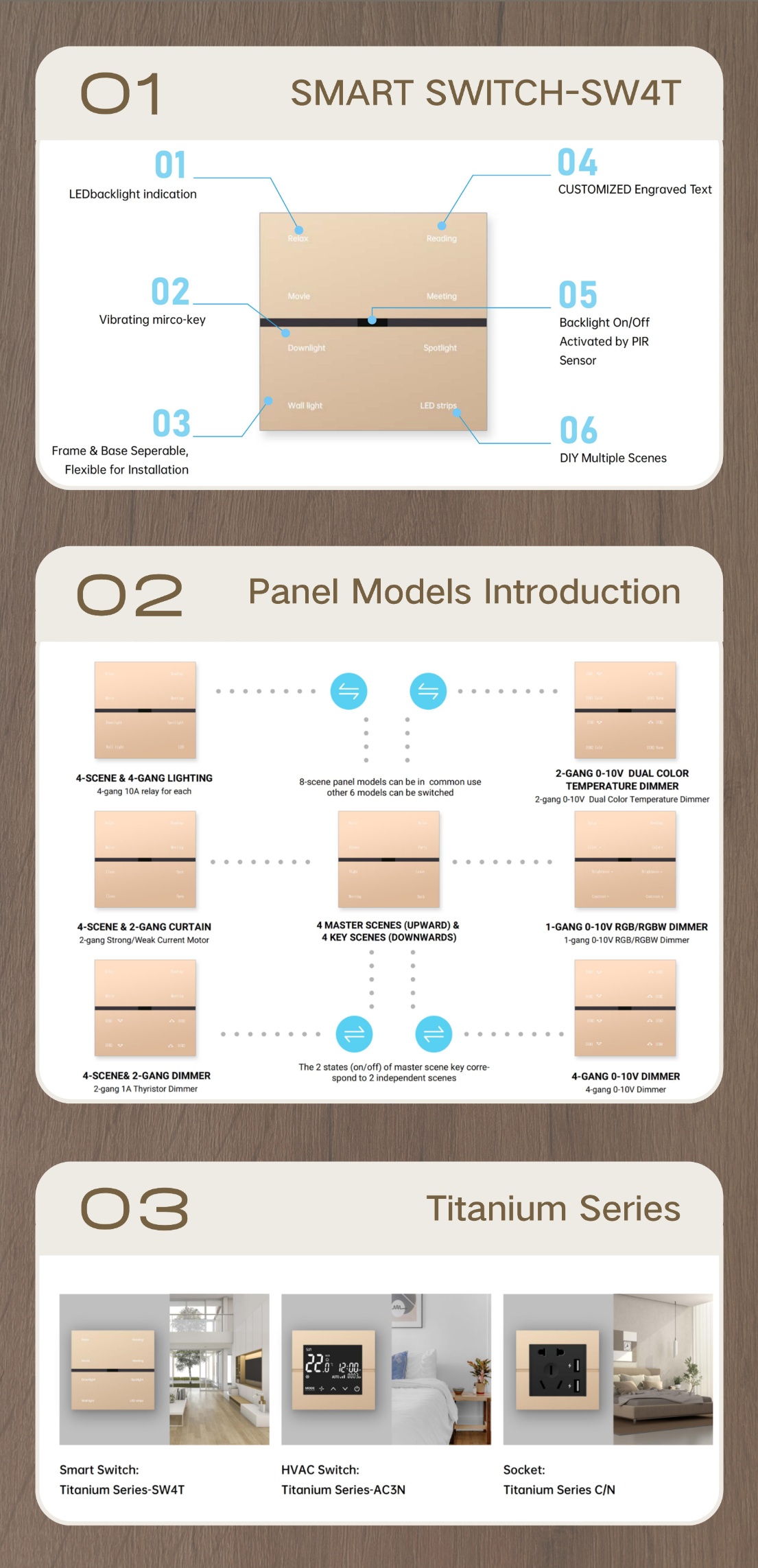

Key Features

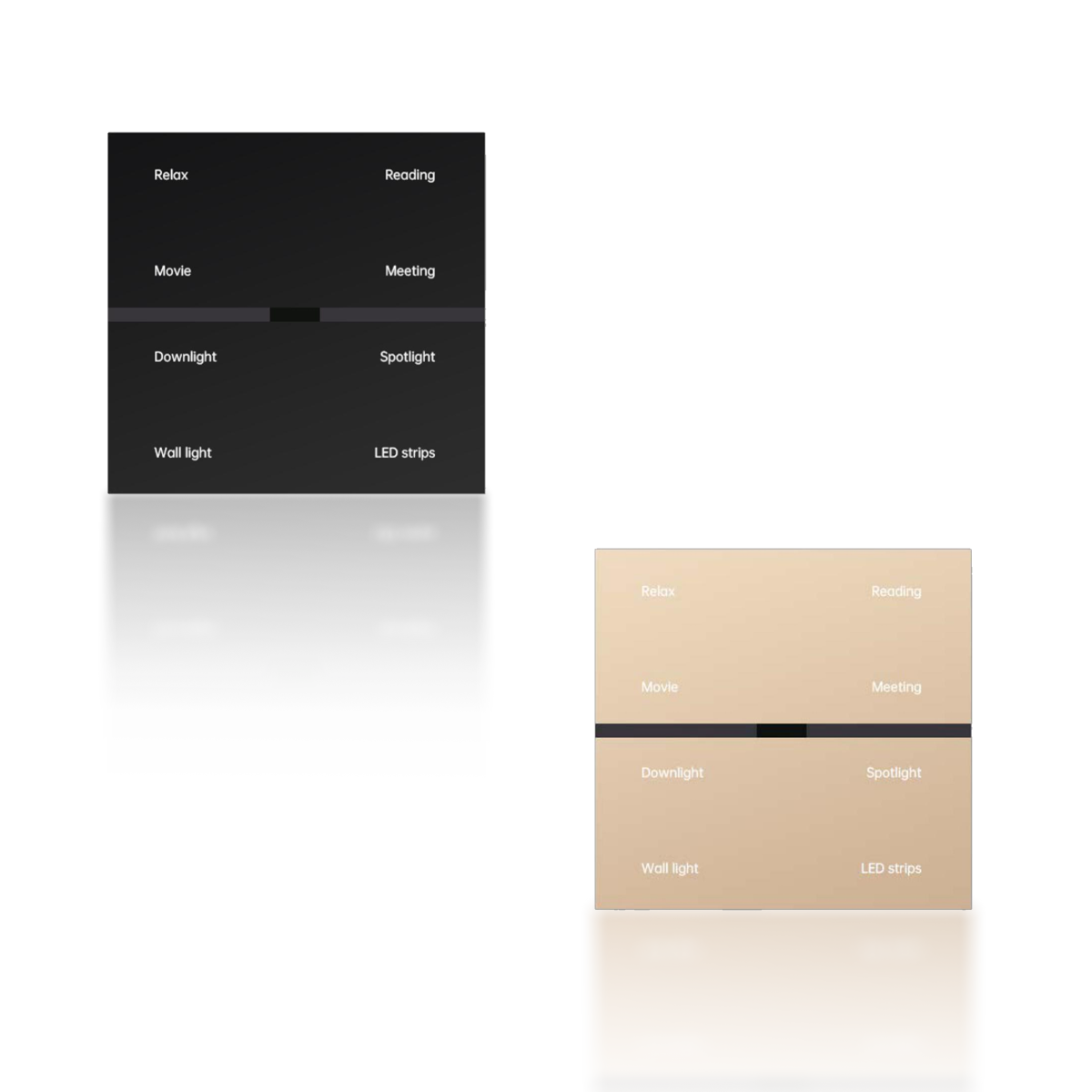

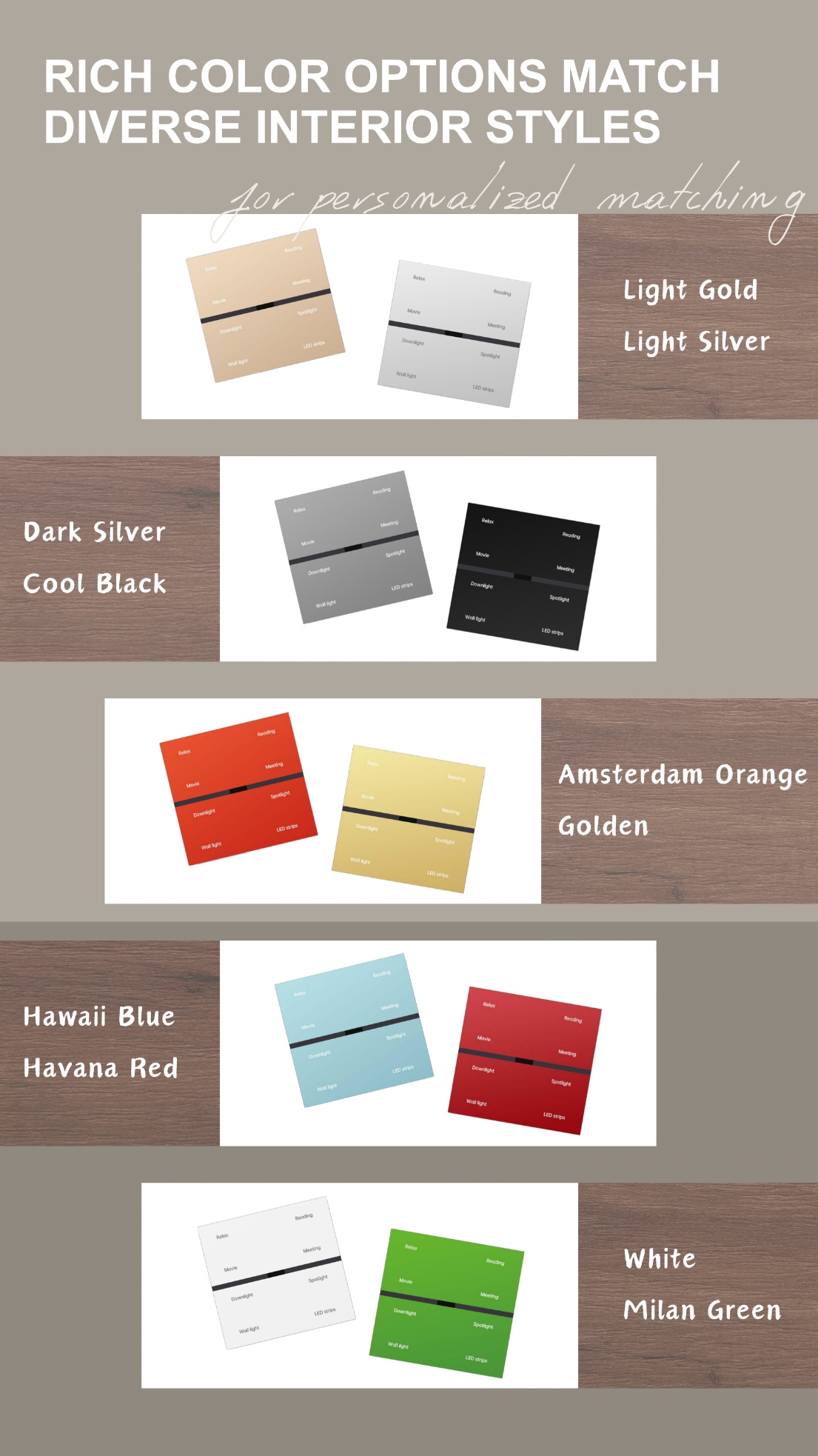

Premium Appearance：Aluminum alloy frame panel with optional abundant exterior colors
Operation Experience：Micro vibration keys provide tangible feedback for each operation
Scene Function：Support DIY setting of multiple independent personalized scenes
Backlight Control：PIR sensor automatically switches the LED backlight on and off
Custom Service：Buttons support laser engraved personalized text marking
Installation Structure：Separable frame and base structure brings flexible installation
Model Diversity：Complete series of models for lighting curtain and dimming control demands
Expansion Ability：Built-in IR learning transponder to access traditional infrared appliances
Control Modes：Integrate touch voice mobile and dry contact multi-channel control
