3rd Gen CLASSIC Series Smart Switch

Key Features

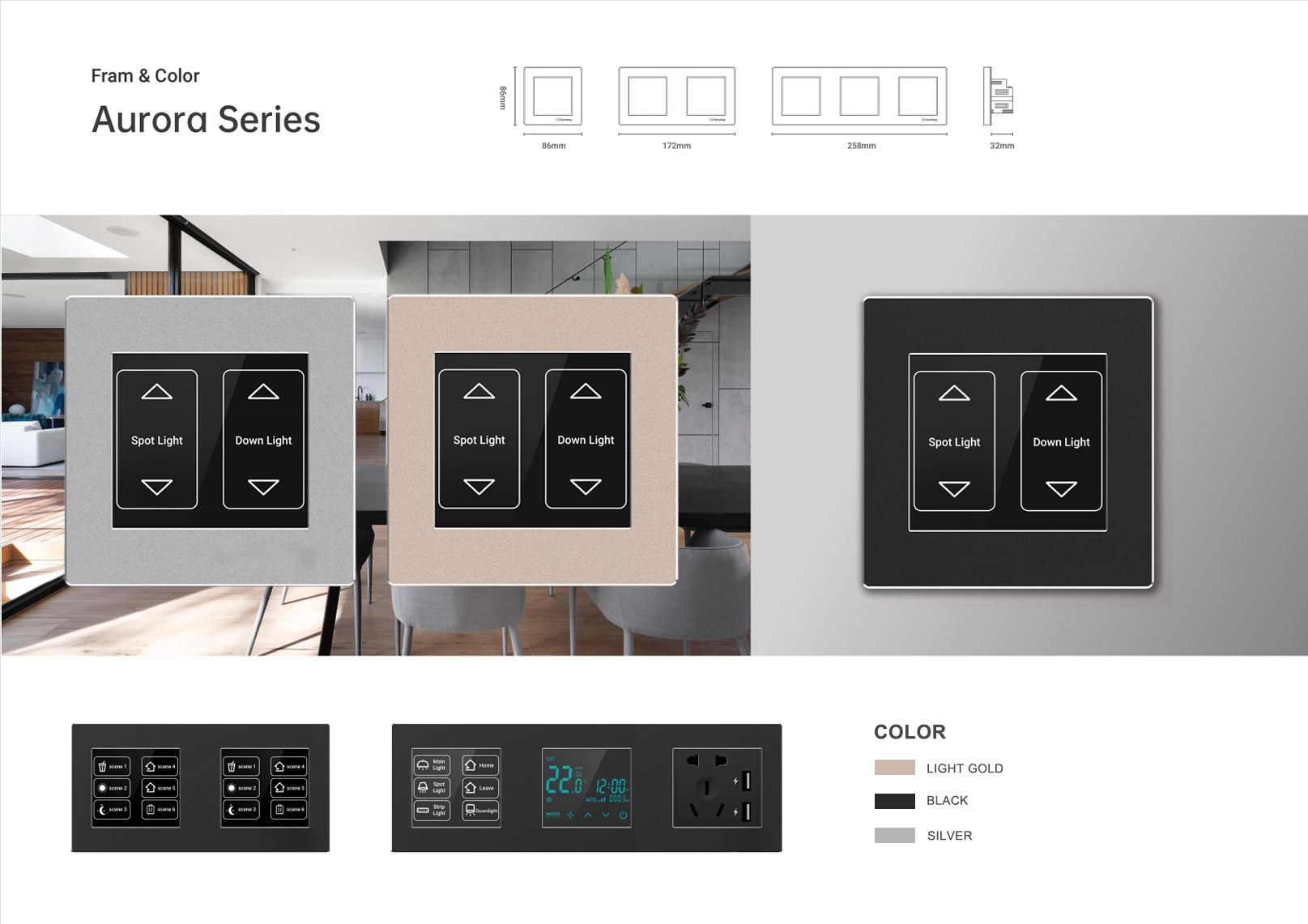

• Panel Material：Aluminum alloy frame matched with acrylic or glass faceplate based on different series
• Control Mode：Capacitive touch button operation with optional 8 colors backlight for keys
• Network Compatibility：Support multiple communication protocols

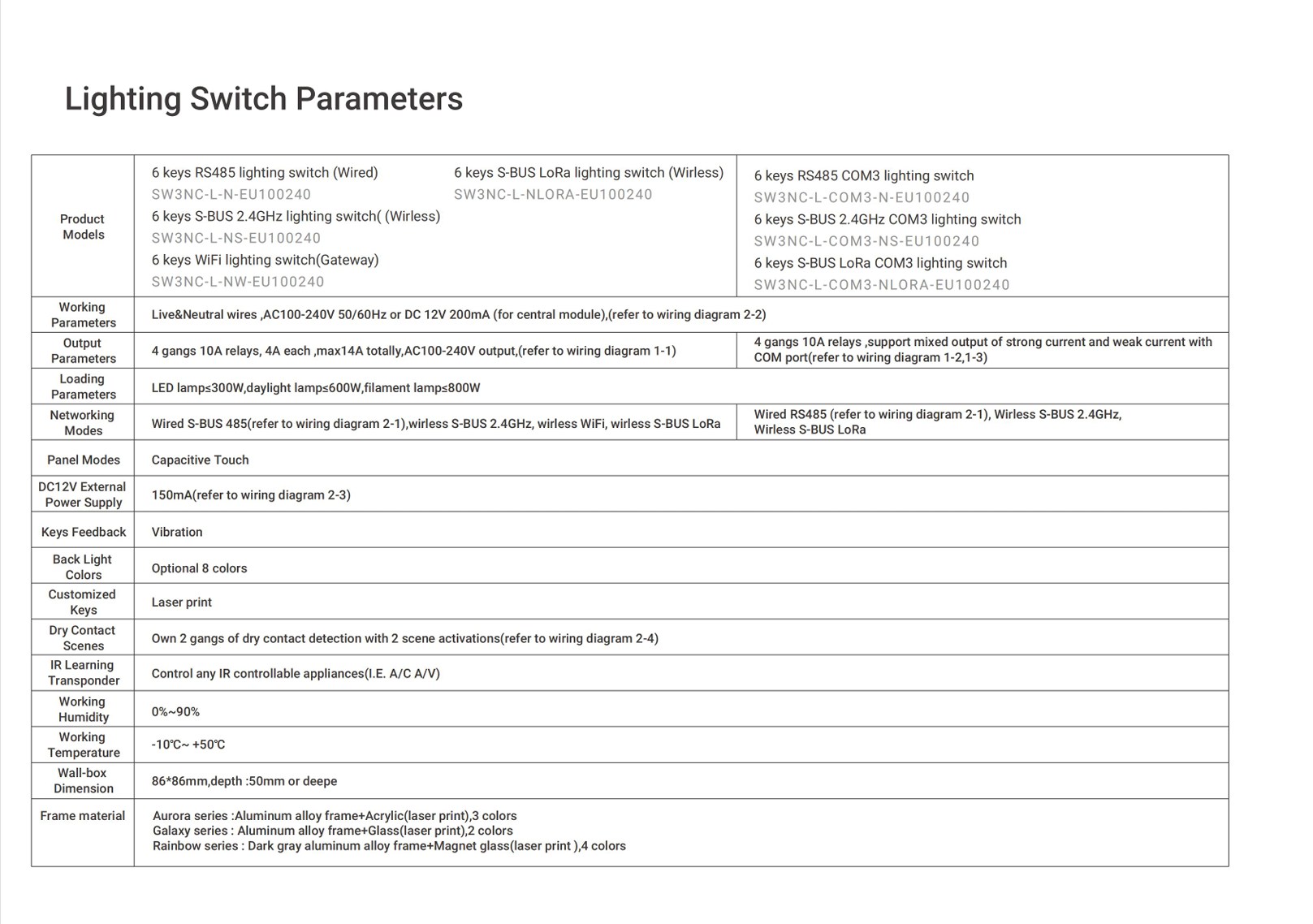

• Output Performance：Four groups of relay output with single channel 10A rated current and max total load of 40A
• Functional Extension：Built in dry contact for scene trigger and IR learning to manage infrared controlled household appliances
• Power Adaptability：Compatible with AC100-240V main power and optional DC12V external auxiliary power supply
• Appearance Customization：Laser printing on buttons and various shell color choices for three product lines

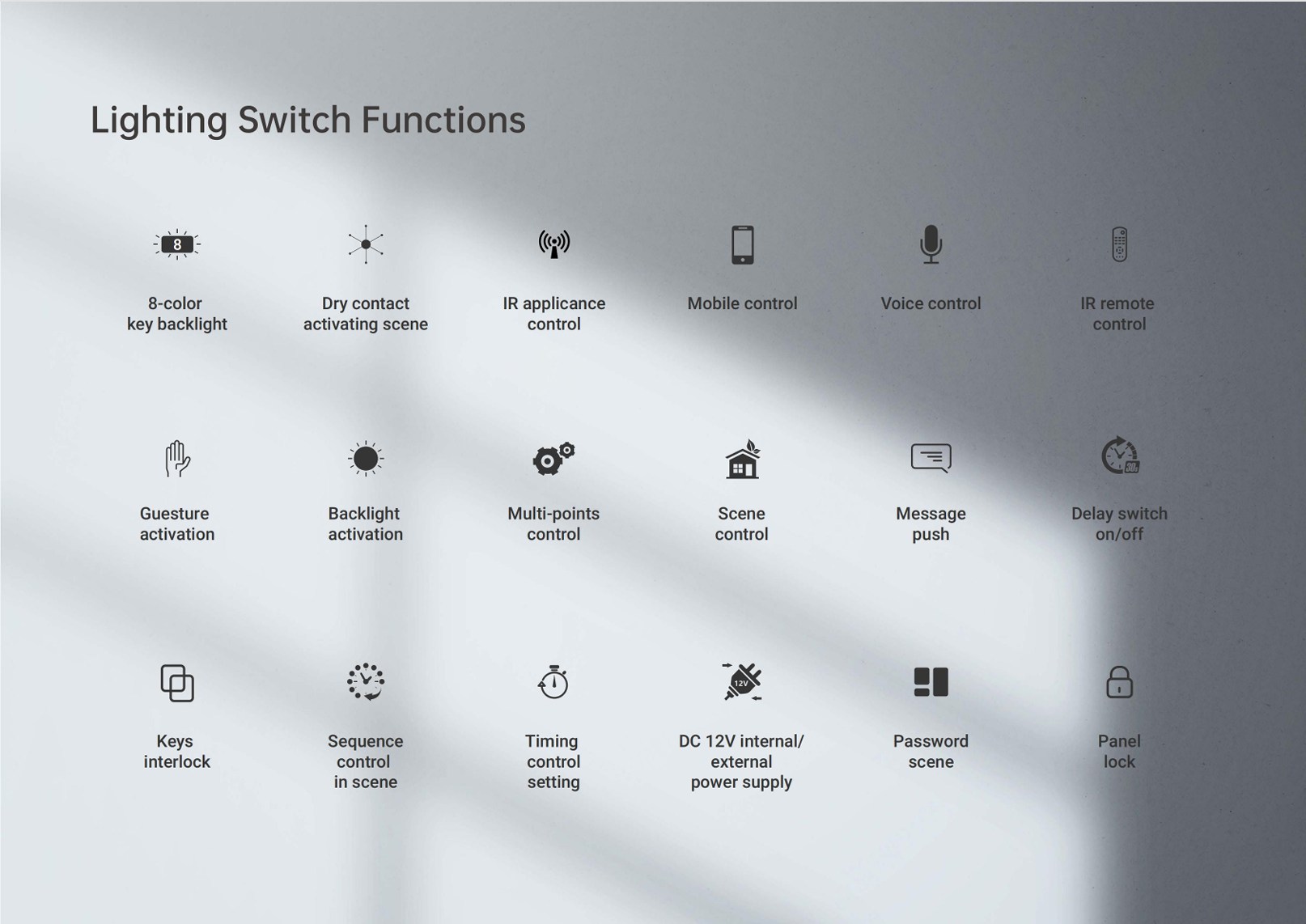

• Smart Functions Integration：Realize mobile control voice control timing setting and scene centralized management
