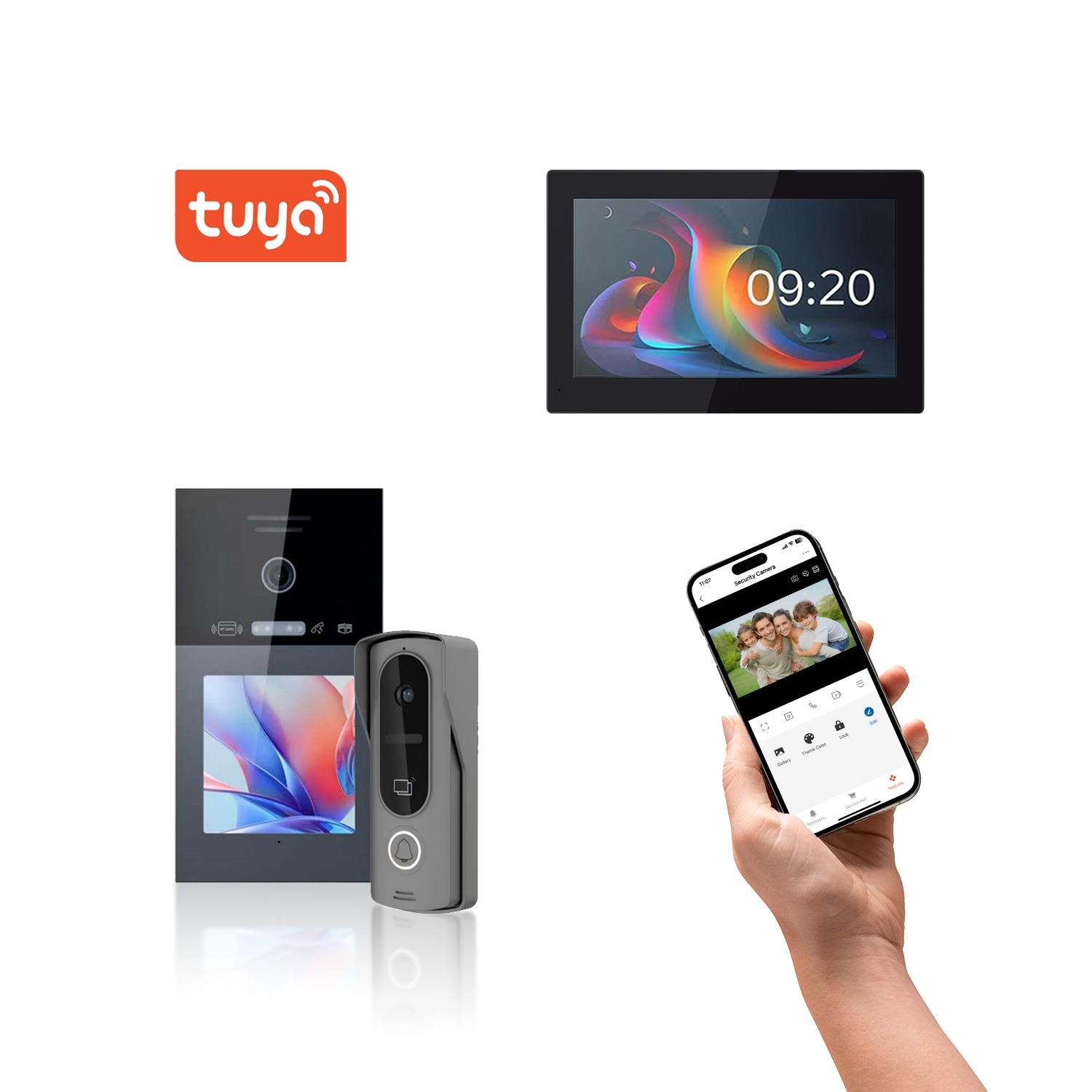

tuya

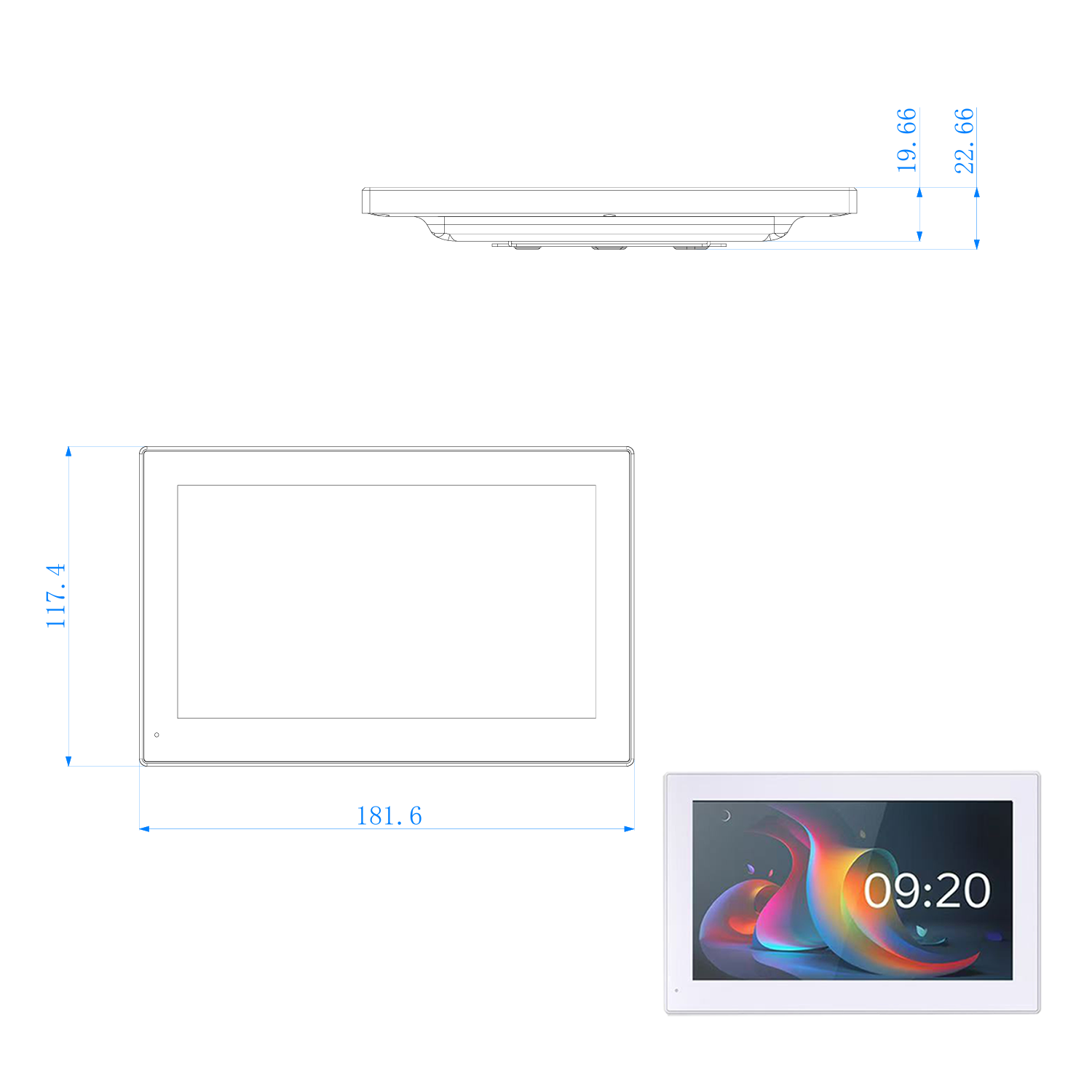

h20 size

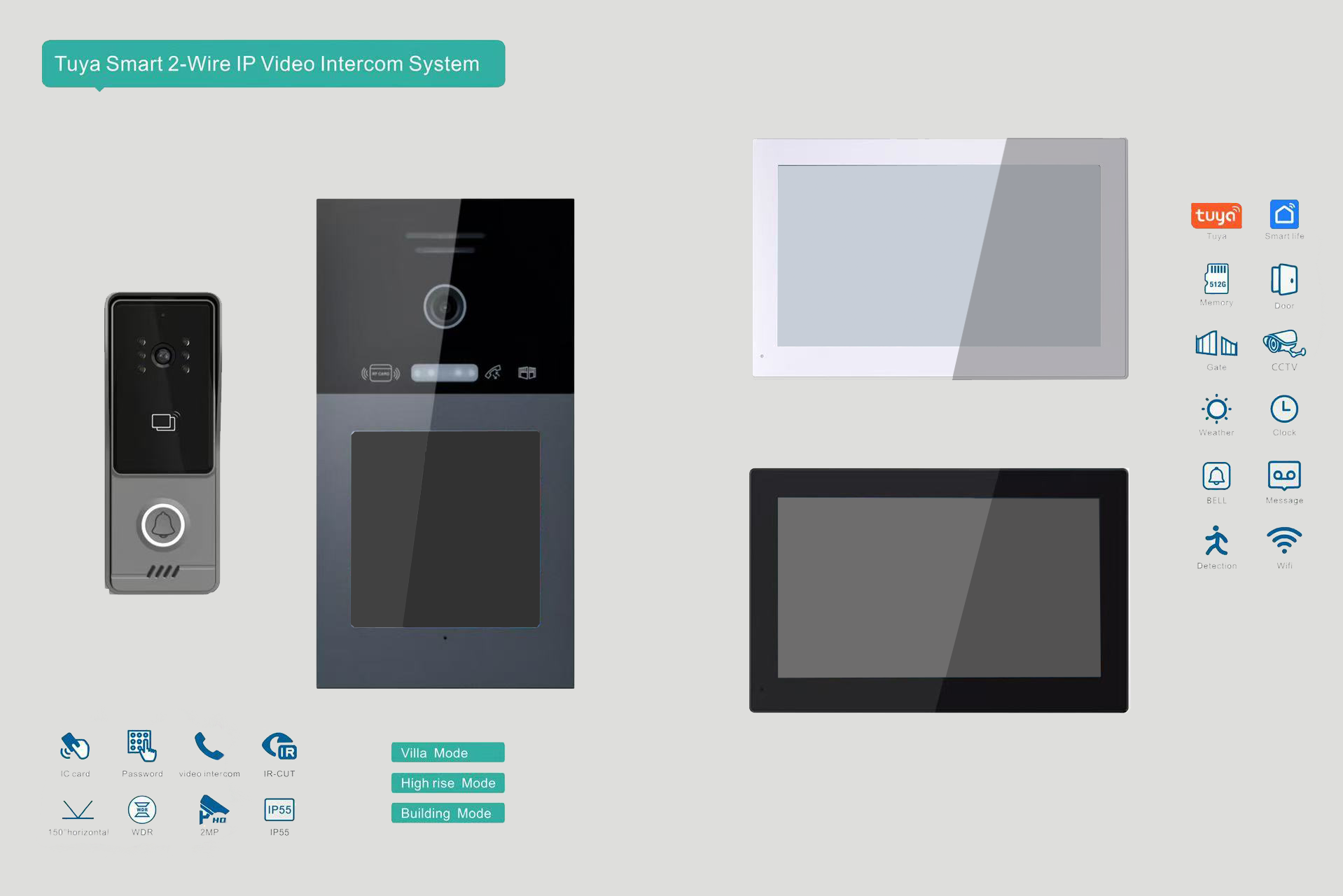

Tuya Smart 2 Wire IP Video Intercom System

Key Features

2-wire Retrofit Design: Simplified 2-wire connection eliminates complicated wiring, perfectly suitable for old house renovation and villa retrofitting with lower installation costs.

Tuya App & Smartphone Control: Built-in Tuya smart system supports real-time intercom, video checking and system management via smartphone app anytime and anywhere.

Remote Unlock Function: Convenient remote door unlock via mobile phone, no need to stay at home to grant visitor access.

HD 720P Video Intercom: Adopts 720P high-definition camera to deliver clear real-time video, ensuring excellent day and night visual experience.

Professional Villa Intercom System: Complete intercom kit including two outdoor door stations and one indoor monitor, specially designed for villa, private house and residential security.

Door Station

Item Specification
System Type Tuya Smart 2-Wire IP Video Intercom System
Camera Resolution 2MP HD (720P)
Camera Features IR-CUT night vision, 150° horizontal view, WDR
Outdoor Station Protection IP55 rated
Working Modes Villa Mode, High-rise Mode, Building Mode
Unlocking Methods IC card, password, smartphone app remote unlock
App Control Tuya App / Smart Life compatible
Additional Functions Motion detection, CCTV linkage, message notification
Application Scenarios Villa intercom, high-rise residential, multi-unit buildings
Installation 2-wire retrofit support



H20

Item Specification
System Type Tuya Smart 2-Wire IP Video Intercom System
Display 7-inch IPS touch screen, 1024 × 600 resolution
Housing & Material ABS plastic + glass touch panel
Dimensions 182 × 118 × 20 mm
Connectivity 2.4G Wi-Fi, 2-wire (SPoE) interface
Power Supply DC24–48V wide voltage
App Control Tuya App / Smart Life compatible, smartphone app remote management
Video Support H.264 HD video stream, 720P
Storage Built-in memory for 100 images, up to 512G TF card support
Power Consumption ≤2.5W standby, ≤5W working
Working Temperature -10℃ ~ 55℃
Compliance CE  certified, RoHS 2.0 compliant
Additional Functions Weather display, clock, voice message, custom ringtone/screensaver
Installation 2-wire retrofit support



B6

Item Specification
System Type Tuya Smart 2-Wire IP Video Intercom System
Camera Resolution 2MP HD (720P)
Camera Features IR-CUT night vision, 110° horizontal view, WDR, distortion correction
Housing & Material Die-cast aluminum alloy, wall-mounted
Dimensions 150 × 58 × 34 mm
Unlocking Methods IC card (up to 100 cards), 2-channel relay unlock
App Control Tuya App / Smart Life compatible, smartphone app remote unlock
Video Encoding H.264
Power Consumption ≤2.5W standby, ≤5.5W working
Working Temperature -40℃ ~ 60℃
Compliance CE certified, RoHS 2.0 compliant
Installation 2-wire retrofit support

  Product Introduction

This matched intercom system consists of three specialized devices built for reliable residential access and communication. The first unit is the B6 2-wire outdoor station, constructed with die-cast aluminum for outdoor wall-mounted installation. It adopts simple 2-wire retrofit wiring structure to reduce installation difficulty. Equipped with a 2MP CMOS camera, it delivers smooth HD video 720p footage with distortion correction and IR night vision. Supporting IC card access and dual relay door release, this outdoor station works steadily with Tuya app control. Users can manage door status and perform remote unlock directly via a smartphone app.



The second product is the H20 7-inch 2-wire indoor station, serving as the indoor display and control terminal. It also supports 2-wire retrofit connection for easy pairing with outdoor stations. Featuring a 7-inch IPS touch screen, it presents synchronized HD video 720p live feed with clear visual performance. With built-in Wi-Fi module, this indoor monitor enables convenient Tuya app control and allows users to complete remote checking and remote unlock through a smartphone app.



The third multi-mode outdoor station is professionally designed for flexible villa intercom, high-rise and building usage scenarios. This upgraded outdoor door station is engineered with waterproof housing that reaches genuine IP65 dustproof and waterproof rating, adapting to complex outdoor environments. It retains universal 2-wire retrofit compatibility and captures detailed HD video 720p footage with its wide-angle camera. Integrated with password and card unlocking methods, it supports intelligent Tuya app control and convenient remote unlock function on a smartphone app.



  Product Certificates
