Tuya 10 Inch Smart 2-Wire IP Video Intercom System

key Features

2-wire Retrofit Design: Simplified 2-wire connection eliminates complicated wiring, perfectly suitable for old house renovation and villa retrofitting with lower installation costs.

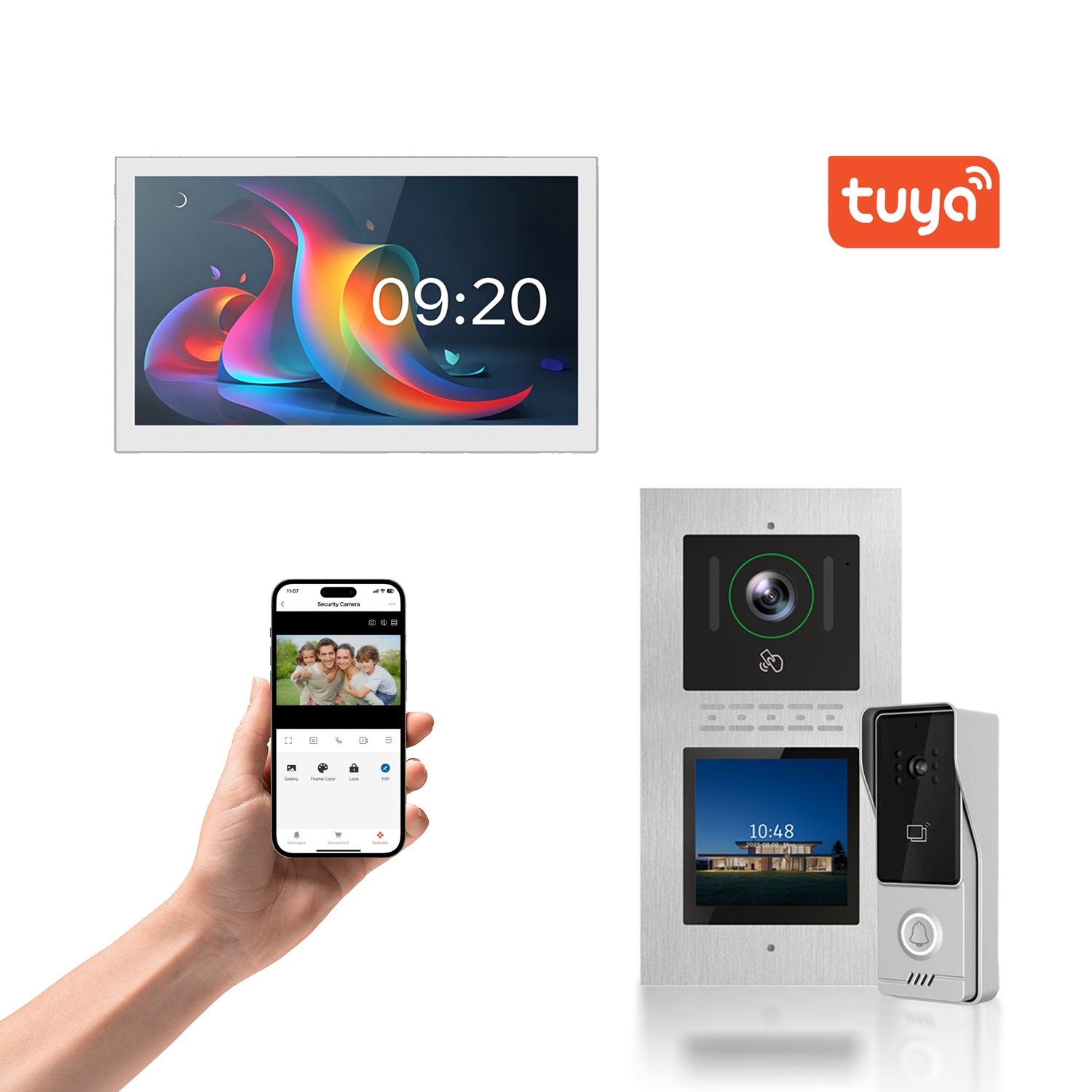

Tuya App & Smartphone Control: Built-in Tuya smart system supports real-time intercom, video checking and system management via smartphone app anytime and anywhere.

Remote Unlock Function: Convenient remote door unlock via mobile phone, no need to stay at home to grant visitor access.

HD 720P Video Intercom: Adopts 720P high-definition camera to deliver clear real-time video, ensuring excellent day and night visual experience.

Professional Villa Intercom System: Complete intercom kit including outdoor door station and indoor monitor, specially designed for villa, private house and residential security.

Reliable & Certified Quality: Strict production standards with CE compliance, stable performance, weather resistance and long service life for outdoor usage.

B5

Item Details
Dimensions 147×57×38mm
Video Compression H.264, 720P
IC Card Capacity 100 cards per household (includes 3 adhesive cards)
Power Consumption Standby ≤2.5W / Operating ≤5.5W
Installation Wall-mounted



G1

Item Details

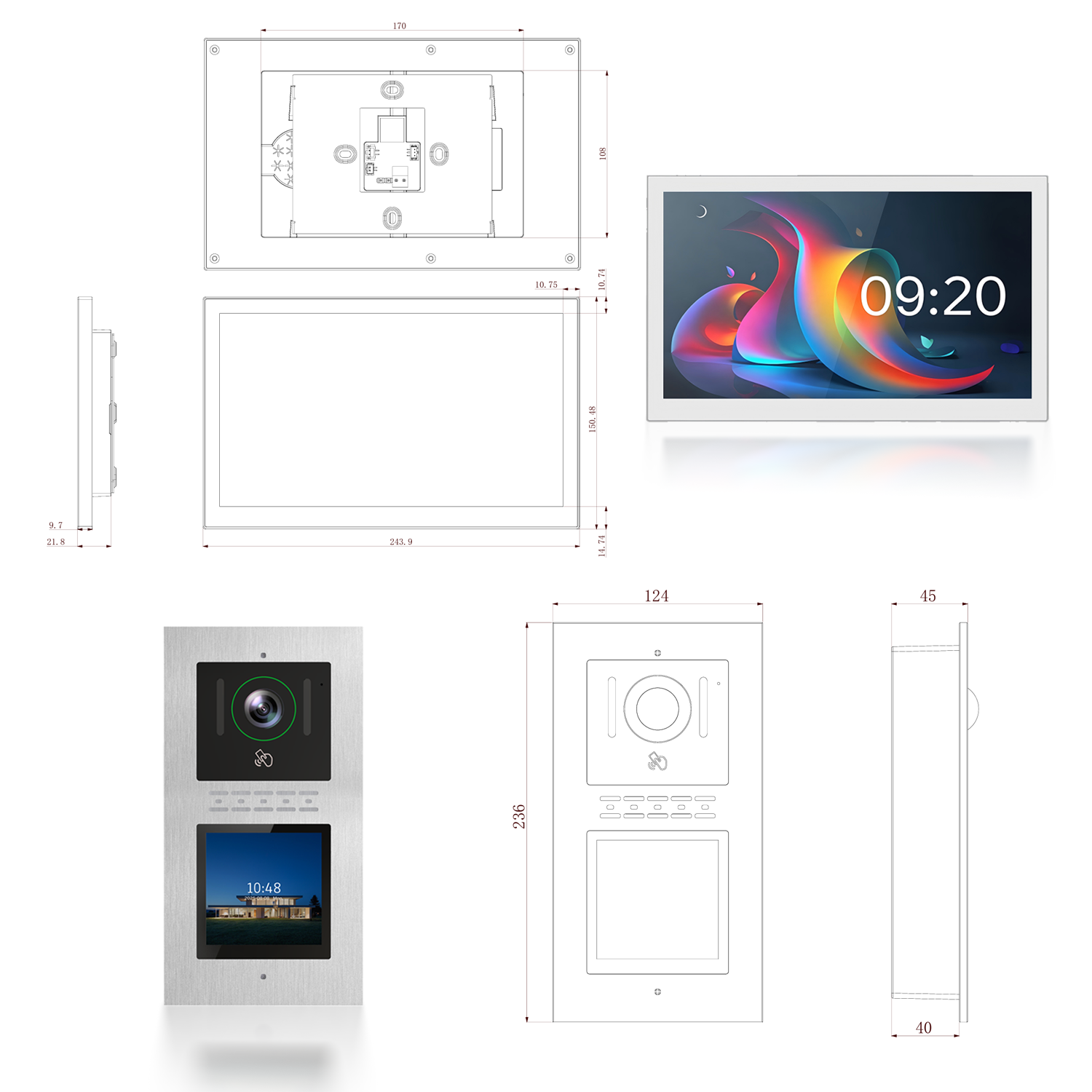

Dimensions Unit: 236 × 124 × 45 mm / Cutout: 210 × 108 × 40 mm
Video Compression H.264 HD video stream
Storage Supports 16G~512G TF card (import/export resident lists)
Power Consumption Standby ≤2.5W / Operating ≤5W
Installation Flush-mounted



H21

Item Details
Dimensions 244 × 151 × 22 mm
Display 10-inch IPS touchscreen (1024×600)
Connectivity 2.4G Wi-Fi + 2×2Wire(SPoE)
Storage 100 built-in photos + up to 512G TF card support
Power Consumption Standby ≤2.5W / Operating ≤5W
Operating Temperature -10°C~55°C





  Product Introduction

The B5 is a compact 2-wire outdoor door station designed for single households and simple villa intercom scenarios. Equipped with a 720P HD video camera, it delivers sharp day-and-night monitoring. Supporting Tuya App control and smartphone remote unlock, this minimalist door station enables easy remote access management.



As an upgraded 4-inch touchscreen outdoor unit, the G1 is engineered for medium and large villas and multi-family buildings. It adopts stable 2-wire transmission with polarity-free wiring. Featuring HD video recording, multi-user card management and optional fingerprint access, it enhances property security. Integrated with the Tuya smart system, it supports real-time mobile monitoring and instant remote unlock. Certified with CE standard, it is a durable and expandable villa intercom peripheral.

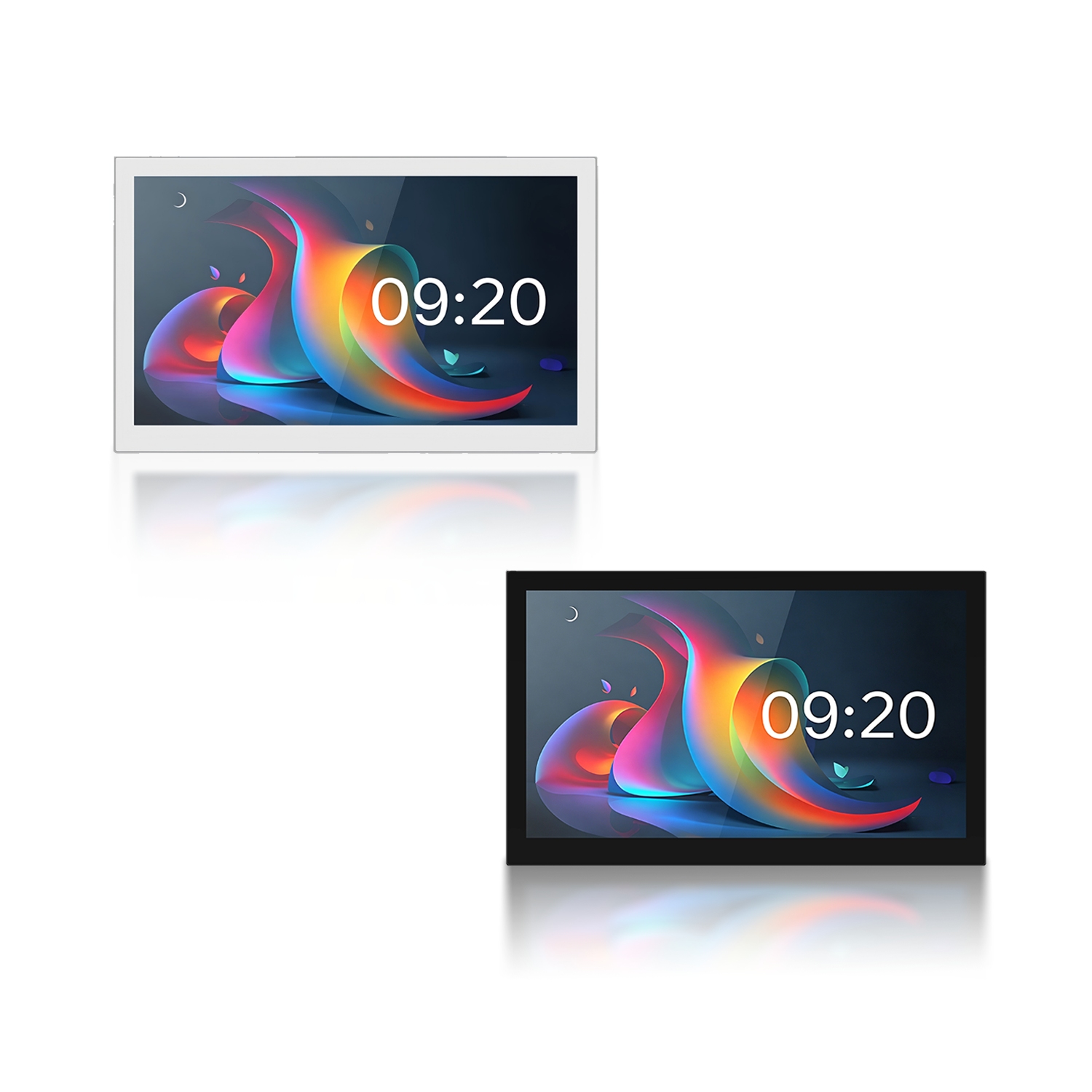

The H21 is a 10-inch high-definition indoor touchscreen monitor for the 2-wire intercom system. It displays clear 720P real-time video from outdoor stations and supports multi-camera monitoring. Users can control door locks, check visitor records and customize system settings directly on the screen or through the smartphone Tuya App. With stable system operation and simple wiring, it serves as an intelligent indoor control center for modern home security.

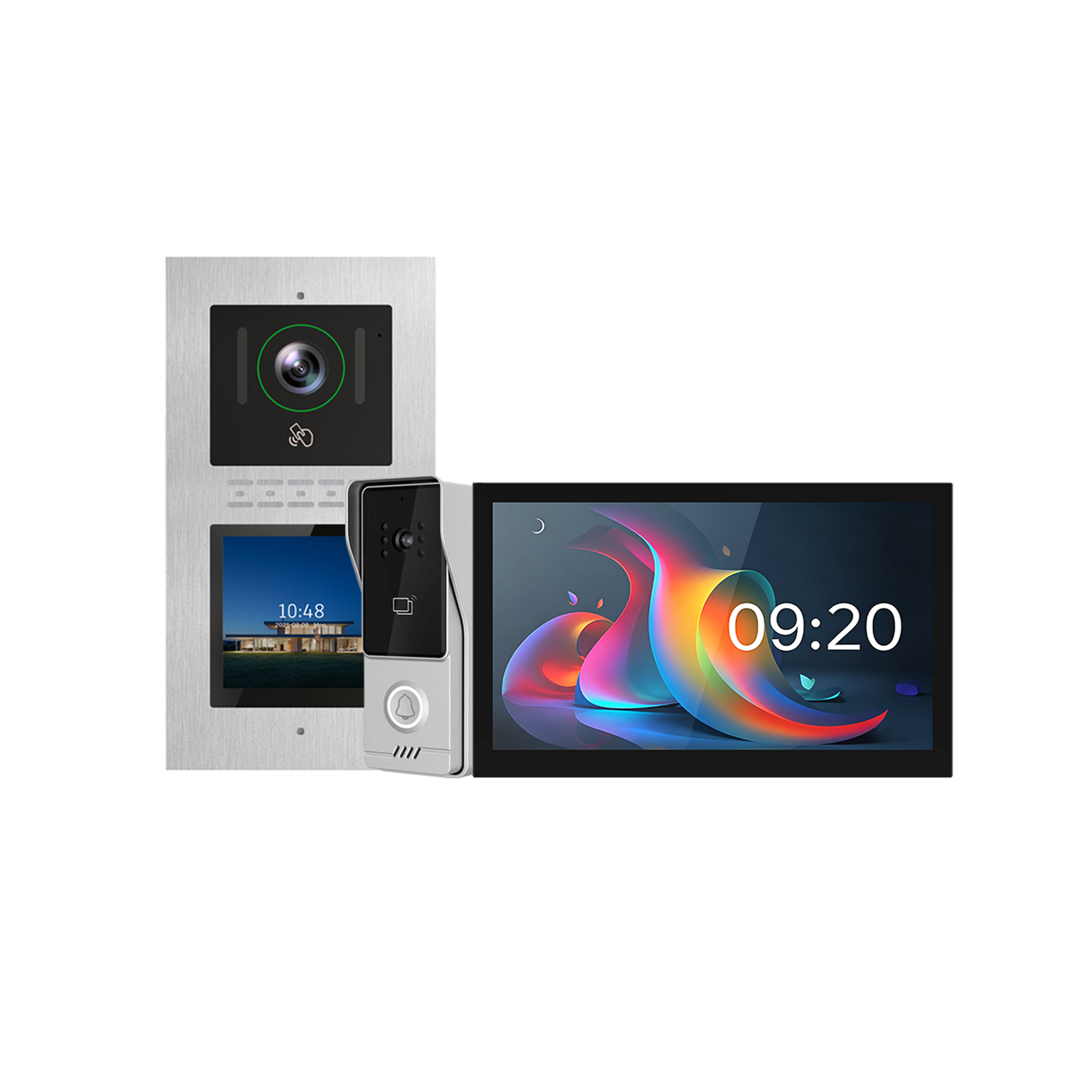

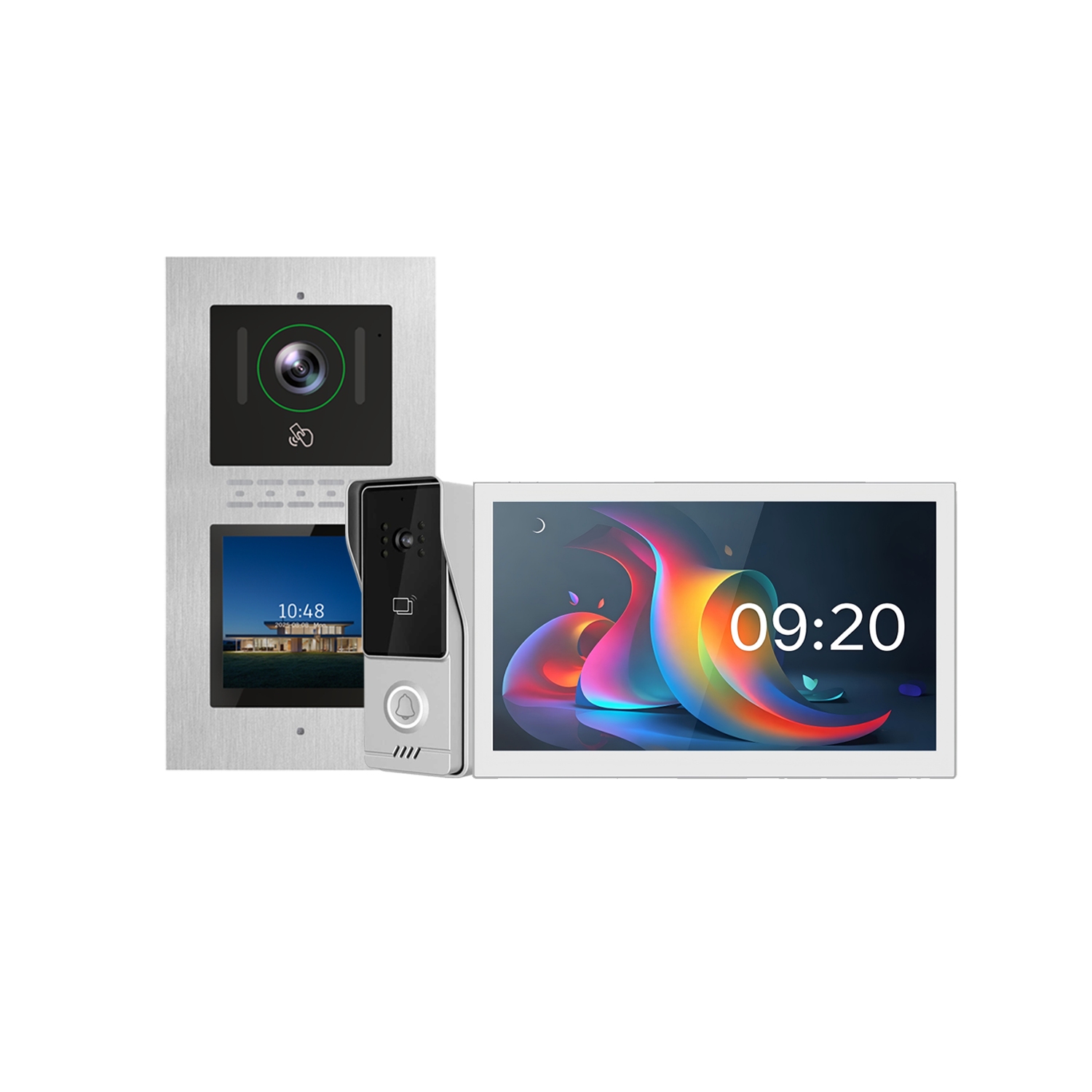

These three devices form a complete 2-wire Tuya intercom kit. Adopting universal 2-wire wiring technology, the whole set is friendly for 2-wire retrofit without complicated cabling. Combined with 720P HD video, stable Tuya cloud connection, convenient smartphone app control and remote unlock function, this all-in-one villa intercom solution provides simple installation and intelligent security management. All products comply with CE compliance, ensuring reliable quality for global residential and commercial use.
