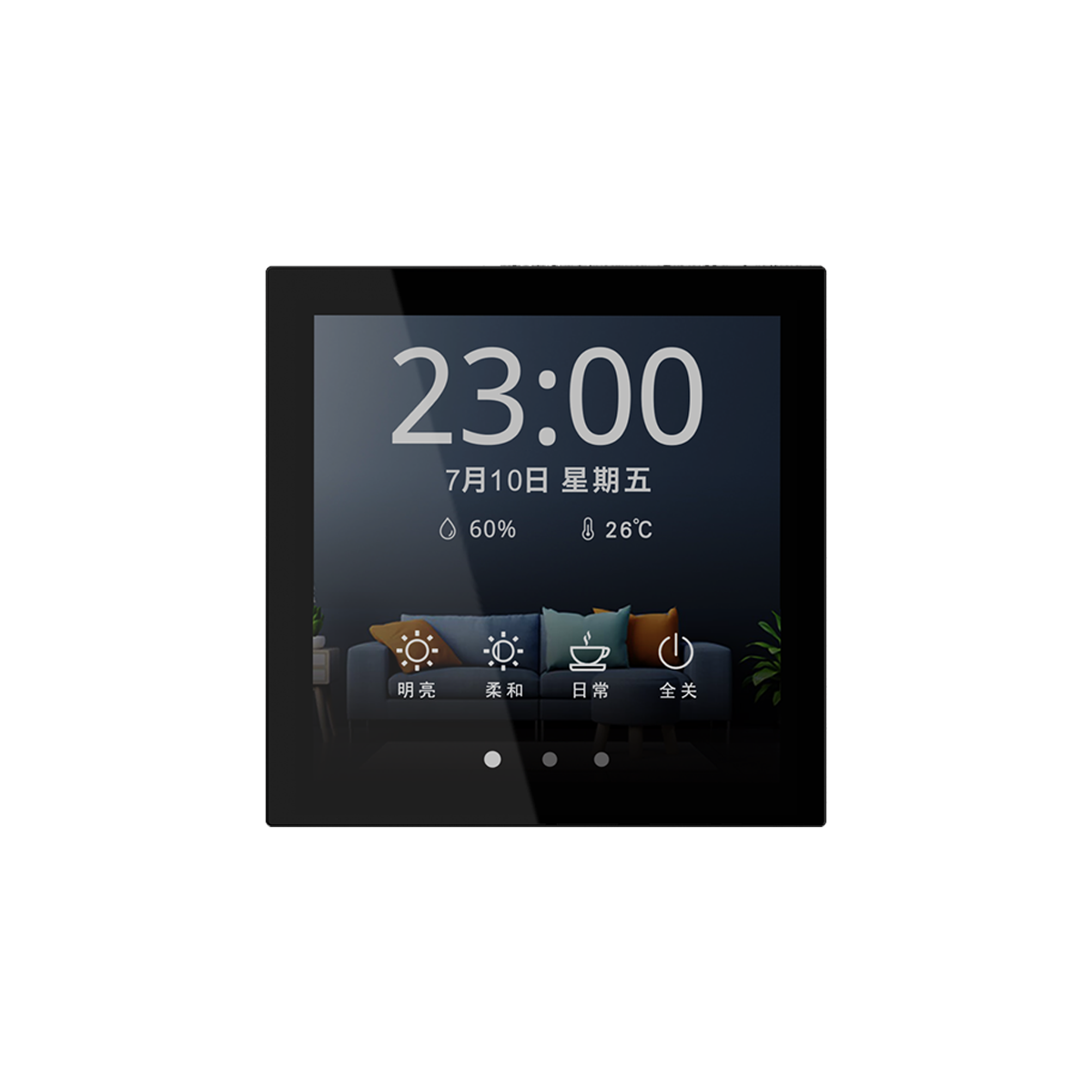

chunping panel2

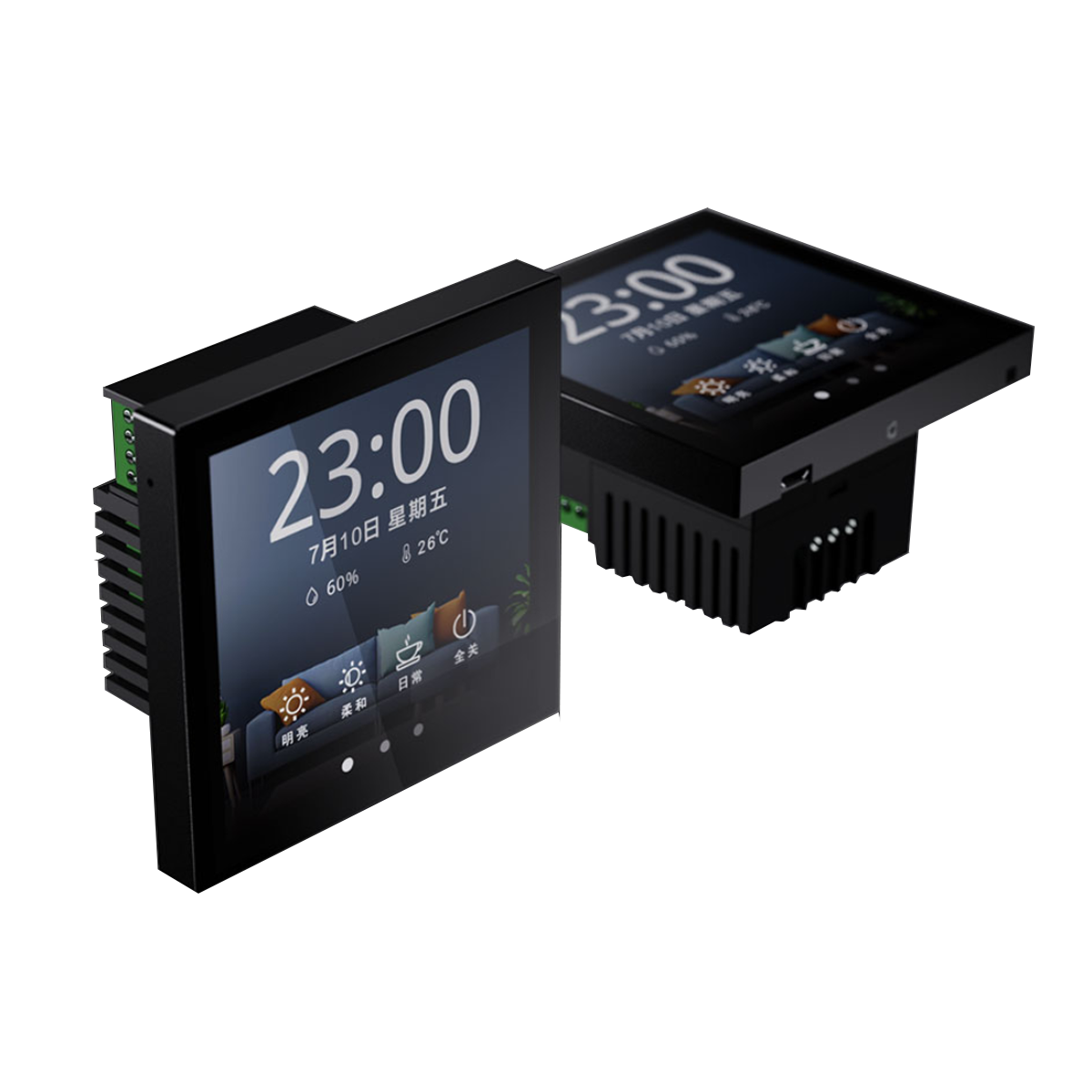

chunping panel3

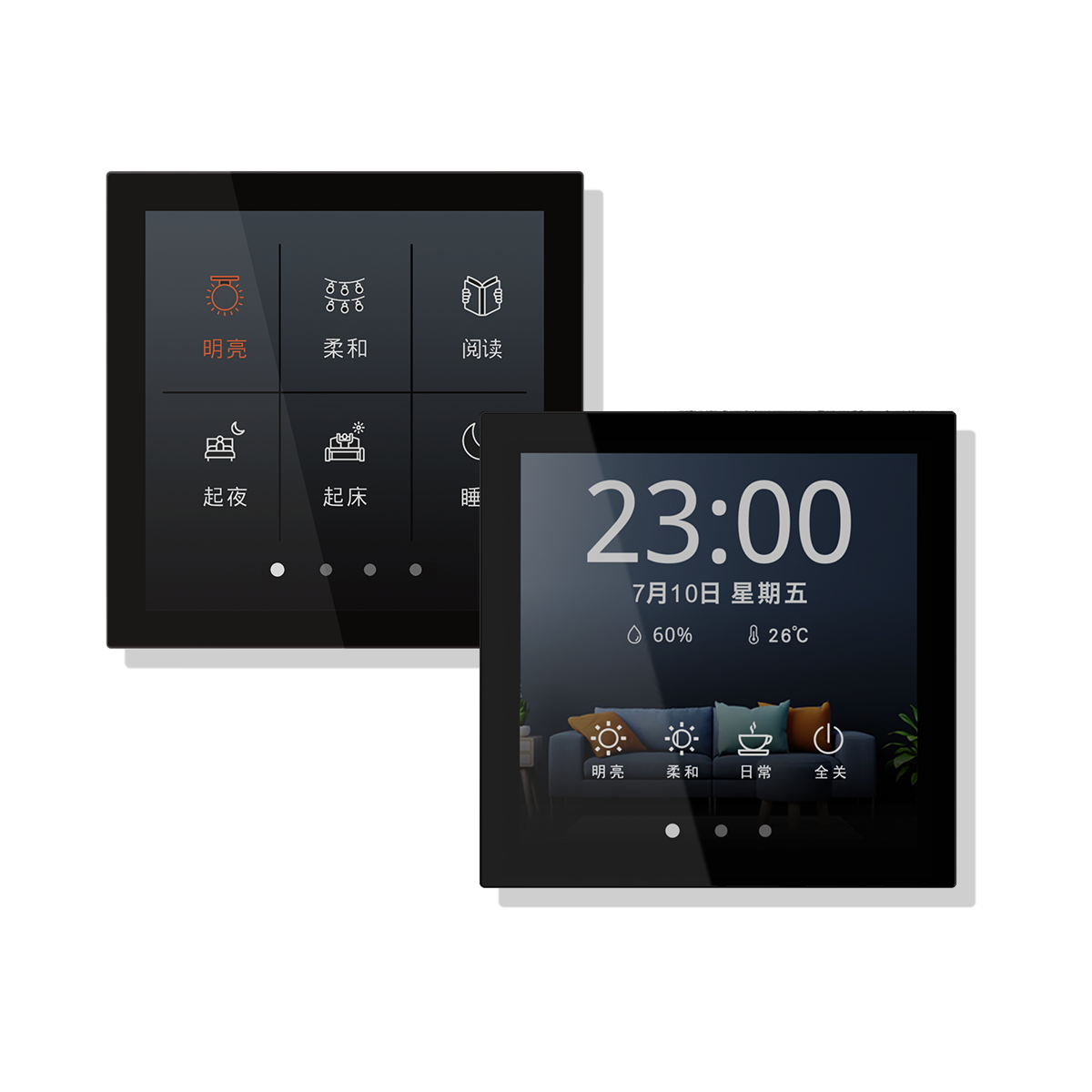

chunping panel1

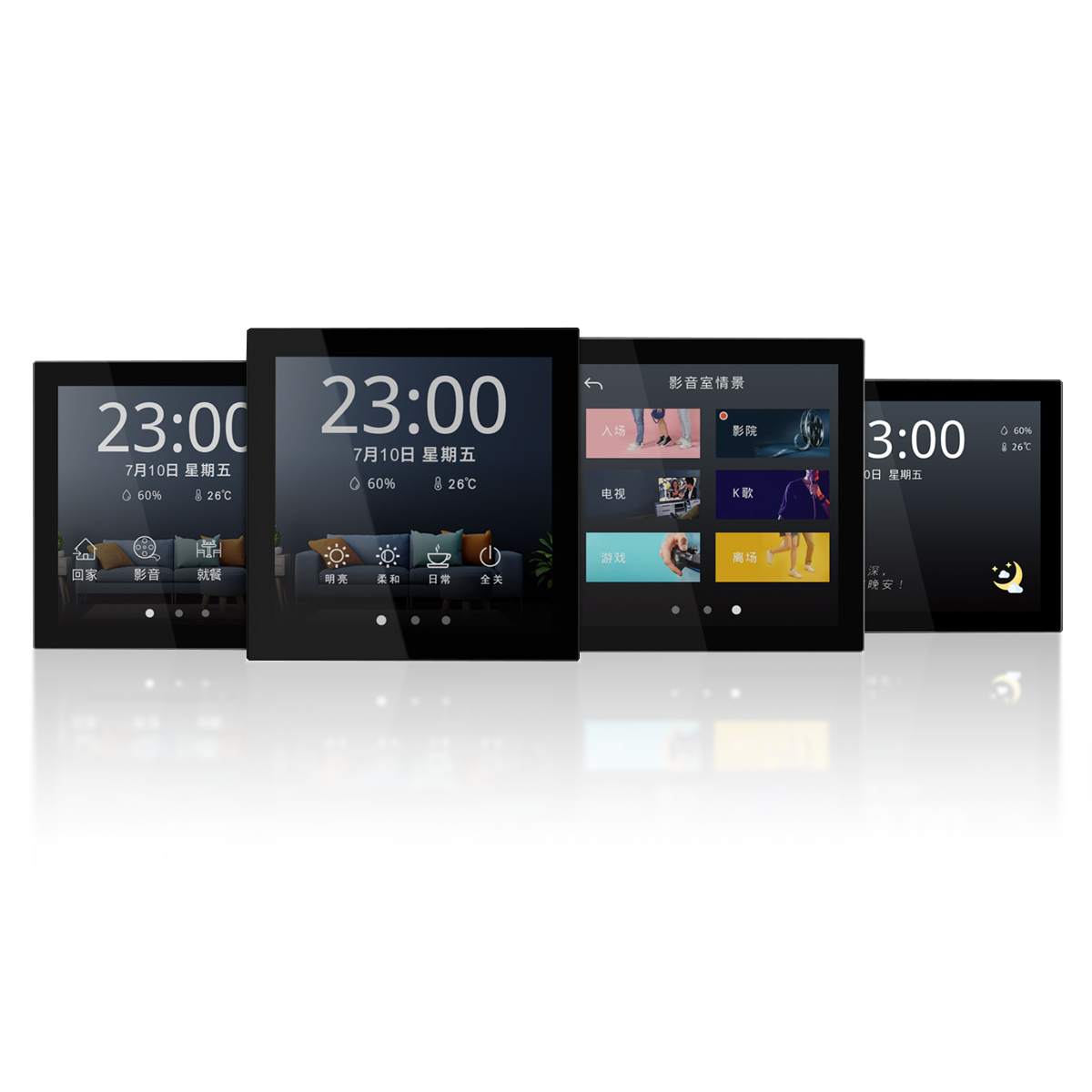

chunping panel4

Pure Screen Intelligent Control Panel

Key Features

  • 4-inch IPS Capacitive Touchscreen: 16.7M colors, 720×720 resolution for clear display and smooth operation

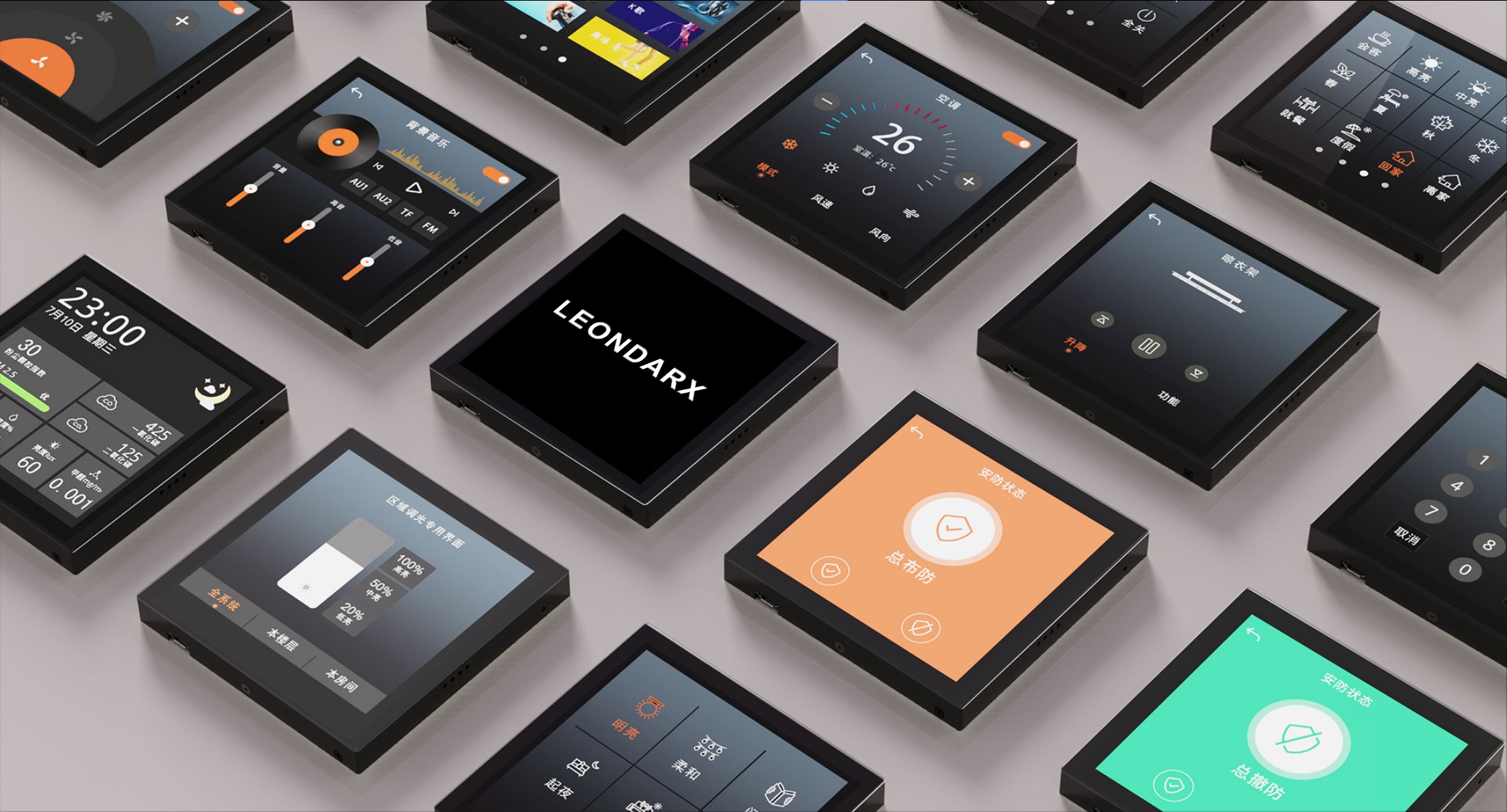

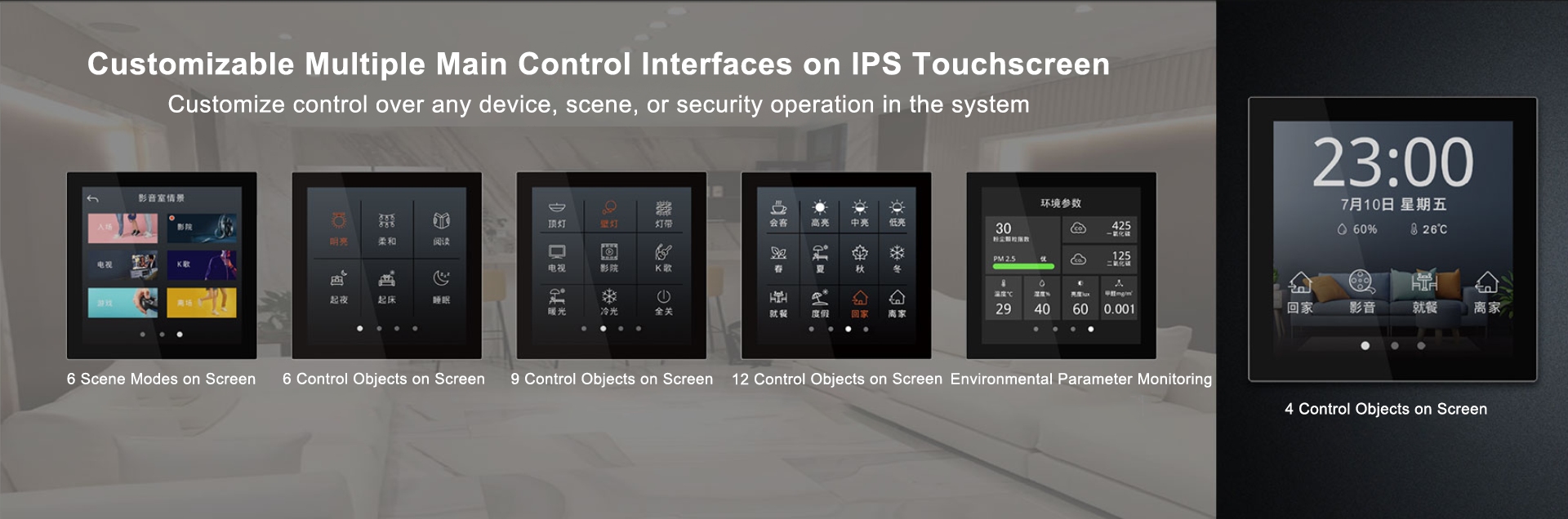

  • Customizable Multi-Screen Interface: 4 main control pages, supporting up to 16 devices/scenes per page
  • Smart One-Touch Control: Instant access to dedicated interfaces for lighting, curtains, HVAC, and security
  • PLC Communication: 2-12MHz carrier frequency with 200-500m stable communication range
  • Built-in Environmental Sensors: Integrated temperature, humidity, and illuminance monitoring
  • Adaptive Display: Auto brightness adjustment in 3 time periods + proximity auto-wakeup
  • Relay Output: 3×5A resistive load relays for direct device control
  • Universal Installation: Fits standard 86-type wall boxes for easy retrofit
  • Low Power Design: ≤20mA standby current, ≤1.8W power consumption for energy efficiency
  • Full Customization: Editable screen text/icons and scene configurations via software
Item Specification
Product Name Pure Touch Smart Control Panel
Model No. PLC-LCD/4/3J (with 3-channel relays)
Operating Voltage AC 220V ± 10%, 50/60Hz
Standby Current ≤ 20mA
Standby Power Consumption ≤ 1.8W
PLC Carrier Frequency 2-12MHz
PLC Communication Distance 200-500m
Touchscreen 16.7M colors, 720×720 resolution, 4-inch IPS capacitive touchscreen
Main Control Screens 4 pages (max. 16 control objects per page)
Screen Navigation Swipe to flip pages

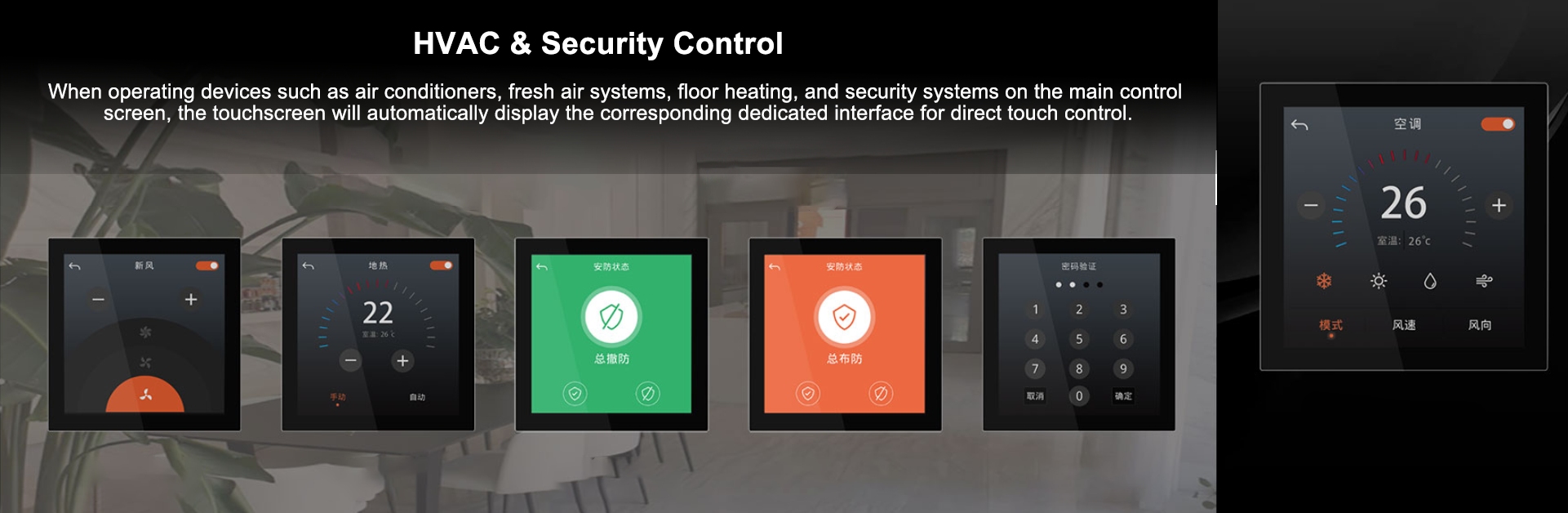

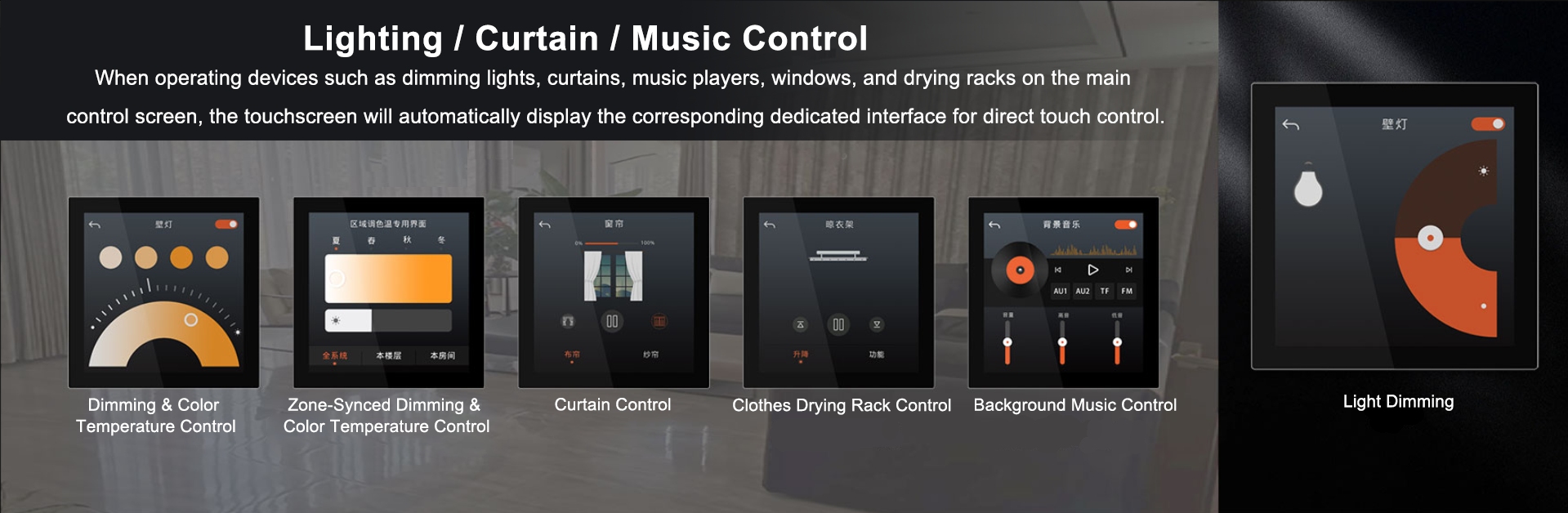

Secondary Control Screens When operating functions (dimming, curtains, music, air conditioning, fresh air, floor heating, security, etc.) on the main screen, the touchscreen automatically displays the corresponding dedicated interface for touch control
Screen Text & Icons Fully customizable via software
Controllable Objects Any device, scene, security operation or environmental monitoring function in the system
Screen Brightness Control Auto-adjust brightness in 3 customizable daily periods (bedroom panels can auto-turn off screen and button backlight after sleep mode)
Screen Proximity Wake-Up Automatically wakes up when human presence is detected in sleep mode
Dimensions 86mm × 86mm × 33.5mm
Mounting Box Compatibility Standard 86-type wall box
Screw Hole Spacing 60.3mm (for boxes with depth ≥ 50mm)
Environmental Monitoring Built-in temperature, humidity and illuminance detection
Relay Output 3 × 5A resistive load relay outputs



Item Specification
Product Name Voice-Enabled Pure Touch Smart Control Panel
Model No. PLC-VLCD/4/3J (with 3-channel relays)
Operating Voltage AC 220V ± 10%, 50/60Hz
Standby Current ≤ 20mA
Standby Power Consumption ≤ 1.8W
PLC Carrier Frequency 2-12MHz
PLC Communication Distance 200-500m
Voice Control Offline voice control, no cloud dependency to ensure user privacy
Touchscreen 16.7M colors, 720×720 resolution, 4-inch IPS capacitive touchscreen
Main Control Screens 4 pages (max. 16 control objects per page)
Screen Navigation Swipe to flip pages
Secondary Control Screens When operating functions (dimming, curtains, music, air conditioning, fresh air, floor heating, security, etc.) on the main screen, the touchscreen automatically displays the corresponding dedicated interface for touch control
Screen Text & Icons Fully customizable via software
