| Item | Specification |
|---|---|
| Product Name | LSK Pad |
| Processor | Cortex-A53 quad-core 1.5G |
| Display | 10.1-inch HD IPS LCD |
| Resolution | 1280×800 |
| Wired Network | 1 x Wired network port |
| Wireless Network | 5G + 2.4G dual-band Wi-Fi |
| Bluetooth | Built-in Bluetooth |
| External Interface | RS485 interface |
| Panel Dimensions | 289×156×11 mm |
| Installation Size | 86×86×70 mm |
| Control Keys | 1 rotary knob + 2 physical keys |

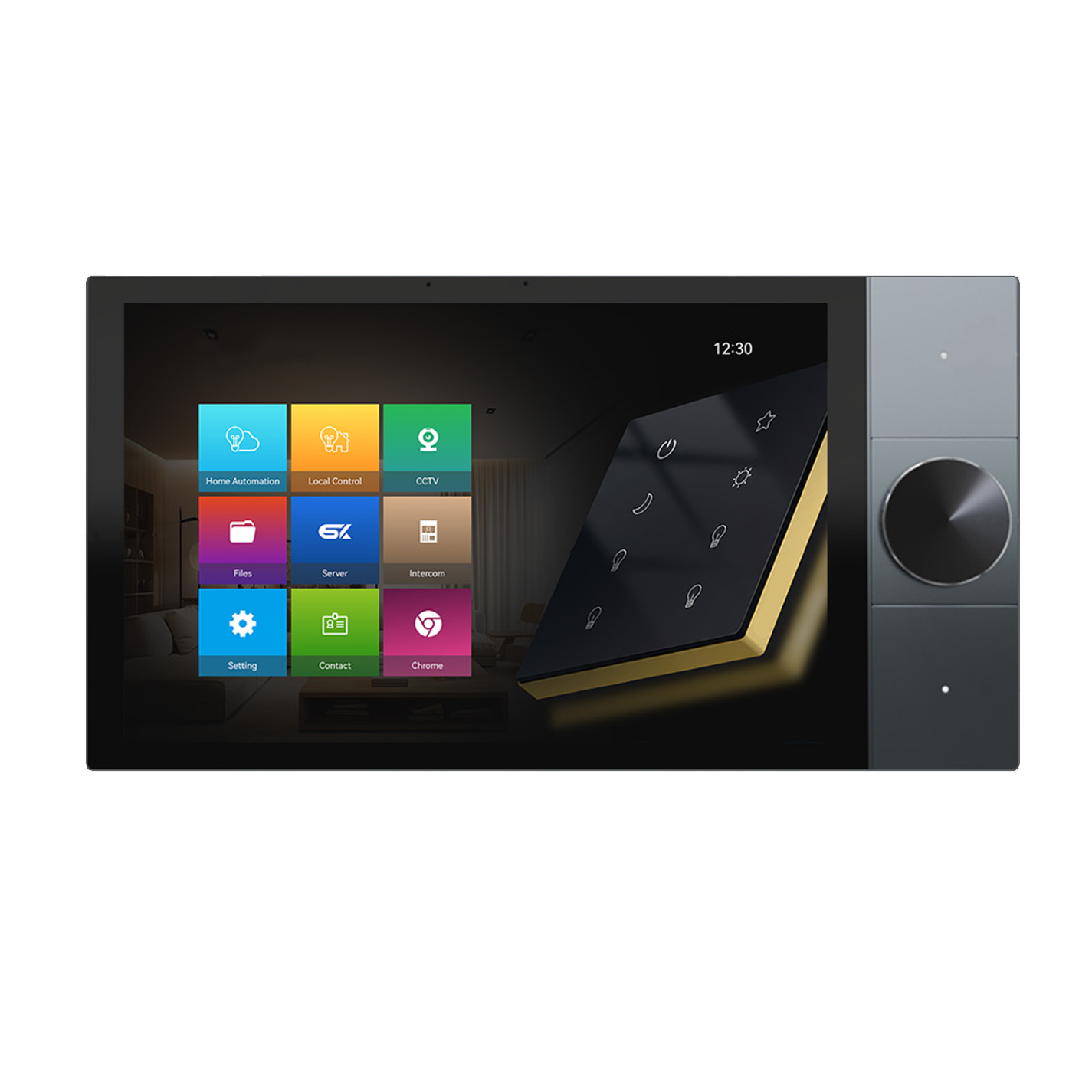

LEONDARX SK Smart Control Panel
Key Features
- Processor: Cortex-A53 quad-core 1.5GHz for smooth performance
- Display: 10.1-inch HD IPS LCD with 1280x800 resolution
- Connectivity: Dual-band 5G+2.4G Wi-Fi and wired network port
- Wireless Support: Bluetooth for speaker and device pairing
- Interface: RS485 for industrial and automation integration
- Control Design: One rotary knob plus two physical keys
- Mounting: Standard 86x86mm installation for easy setup
Product Introduction
The LSK Pad is a versatile smart control terminal built for reliable performance and easy integration. Its quad-core processor ensures smooth operation of automation tasks and on-screen interactions. The 10.1-inch HD IPS LCD delivers vivid visuals from any viewing angle. Multiple connectivity options including wired network, dual-band Wi-Fi, Bluetooth, and RS485 allow compatibility with diverse smart ecosystems. Designed with standard 86mm mounting, it fits seamlessly into most wall boxes. The combination of a rotary knob and physical keys provides a tactile, user-friendly control experience.
